Steering Wheel

^ Tools Required
- J 42120 Steering Wheel Puller Legs
- J 1859-A Steering Wheel Puller
- Or Equivalents

Removal Procedure
1. Remove the inflator module. Refer to Supplemental Inflatable Restraint (Driver Inflator Module).
2. Remove the steering wheel set nut.

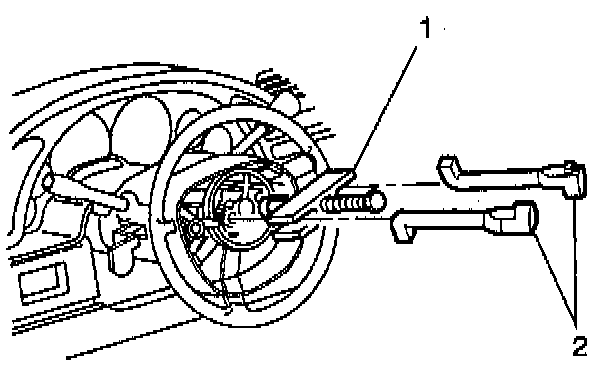

3. Install tools J 1859-A Steering Wheel Puller (1) and J 42120 Steering Wheel Puller Legs (2).
4. Tighten the puller center screw against steering column shaft until the steering wheel slides off the steering column shaft.

Installation Procedure
1. Install the steering wheel onto the steering column, observing the alignment marks (splines).
2. Install a new steering wheel set nut.
- Tighten the steering wheel set nut to 41 Nm (30 lb ft).

Notice: Always use the correct fastener In the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion Inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

3. Connect the horn connector.
4. Install the inflator module. Refer to Supplemental Inflatable Restraint (Driver Inflator Module).
5. Perform SIR Diagnostic System Check. Refer to SIR Diagnostic System Check in AIR BAGS AND SEAT BELTS.
