Bleeding Procedure

Important: Do not remove the key from the ignition after turning the ignition OFF. If the key is removed from the ignition the electronic column lock will engage.

1. Turn OFF the ignition.
2. Raise the front wheels off the ground.

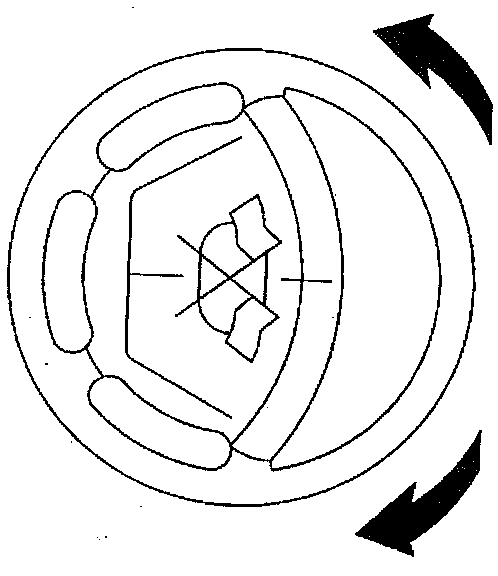

3. Turn the steering wheel completely to the left.

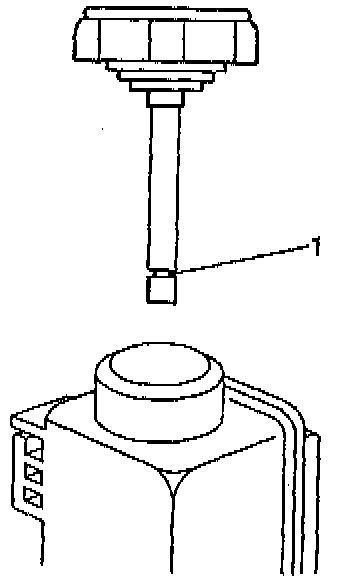

4. Fill the fluid reservoir to the Full Cold level. Leave the reservoir cap off.





5. Turn the steering wheel from lock to lock at least 20 times.
6. Have an assistant check the following conditions while turning the steering wheel: The power steering fluid level. The power steering fluid for bubbles.
7. Turn the steering wheel from lock to lock at least 40 times if the power steering system has either of the following components:
- A long power steering return line.
- A power steering fluid cooler.
8. Check the fluid constantly while turning the wheel.
9. Trapped air may cause the power steering fluid to overflow. Thoroughly clean up any spilled fluid.
10. Maintain the fluid level at the Full Cold mark.
11. The fluid must be free of bubbles. If bubbles exist, check the connections again and repair as necessary. Repeat steps 5, 6 and 7 for turning the steering wheel while checking the power steering fluid.
12. Start the engine.
13. Maintain the power steering fluid level while the engine idles.





14. Reinstall the cap.
15. Return the wheels to the center.
16. Lower the front wheels to the ground.
17. Keep the engine running for two minutes.
18. Turn the steering wheel in both directions.
19. If all the following conditions exist, the procedure is complete:
20. If any of the following conditions do not exist, proceed to Special Conditions For Bleeding:
- The system has smooth power assist.
- The system has noiseless operation.
- The power steering fluid is filled to the proper level.
- There are no system leaks.
- The power steering fluid is not discolored and is free of bubbles and foam.
