Electronic Steering Column Lock - Inoperative: Overview

File in Section: 02 - Steering

Bulletin No.: 01-02-35-008

Date: December, 2001

TECHNICAL

Subject:
Electronic Steering Column Lock May Refuse to Operate - DIC Service Message Displayed (Update Column Lock Wiring, Install Revised Relay and/or Replace Electronic Column Lock)

Models:
1997-1998 Chevrolet Corvette
2000 Chevrolet Corvette

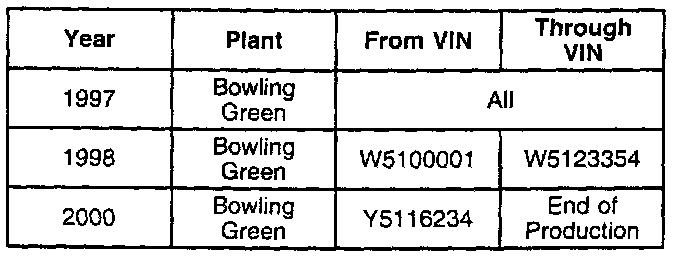

Built Between the VIN Breakpoints shown.

Important:
This Service Bulletin only applies to vehicles that are NOT included in Customer Satisfaction Campaign 00104A Corvette Electronic Column Lock. Some customers may comment that the electronic steering column may not function as intended. The condition could result in the failure of the steering column to unlock during initial key-in and start-up. The customer may also comment on a "Pull key, Wait Ten Seconds" or a "Service Column Lock" message appearing on the Driver Information Center. Should the column fail to unlock, the PCM will disable the fuel to the engine, limiting the vehicle to approximately 3 km/h (2 mph).

Correction

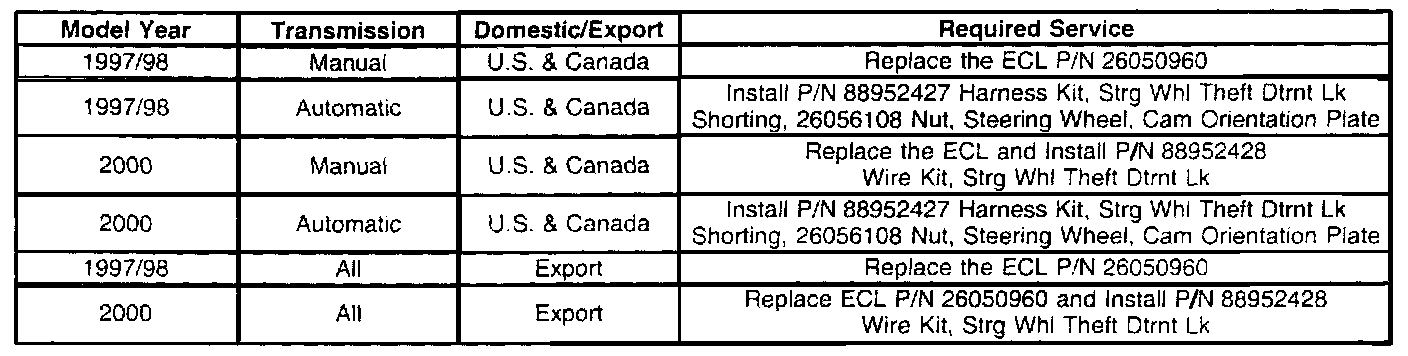

The required repair varies depending on the model year, transmission and if the vehicle is domestic or export. Please refer to the chart shown which outlines the proper parts to install with each combination.

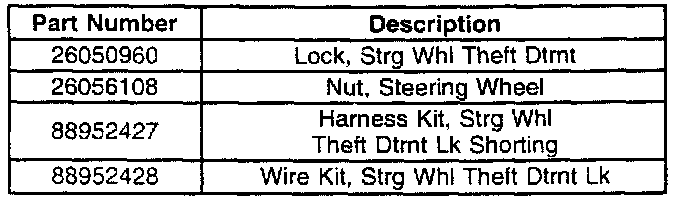

Parts Information

Parts are currently available from GMSPO.

Warranty Information

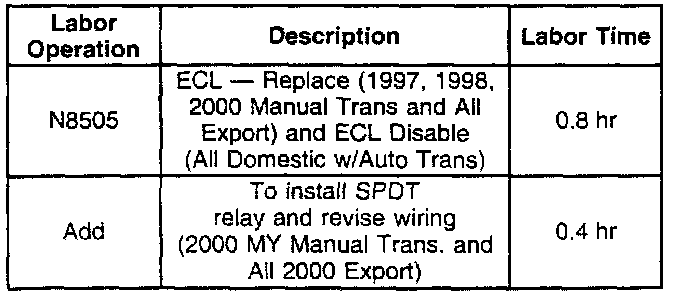

For vehicles repaired under warranty, use the table as shown.
