Removal Procedure






CAUTION: Replace belts, retractors, and hardware in use during all but a minor collision. Also, restraint systems should be replaced and anchorage's properly repaired if they were in areas damaged by collision, whether the belt was in use or not. If there is any question, replace the belt system. Damage, whether visible or not, could result in serious personal injury in the event of an accident.

REMOVAL PROCEDURE
1. Remove the driver seat.
2. Disconnect the seat belt electrical connector.

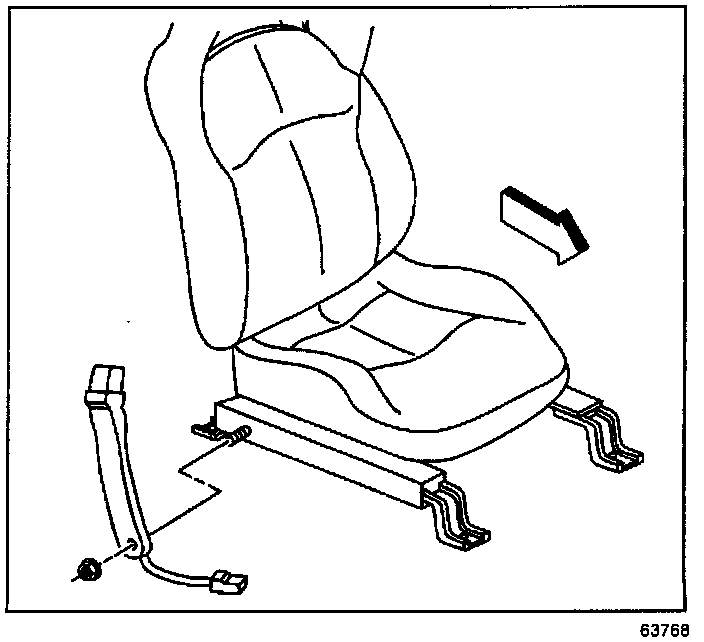

3. Remove the buckle side seat belt from the seat track.
