Removal

1. Disable the SIR system. Refer to Air Bag(s) Arming and Disarming.
2. Remove the I/P upper trim pad.

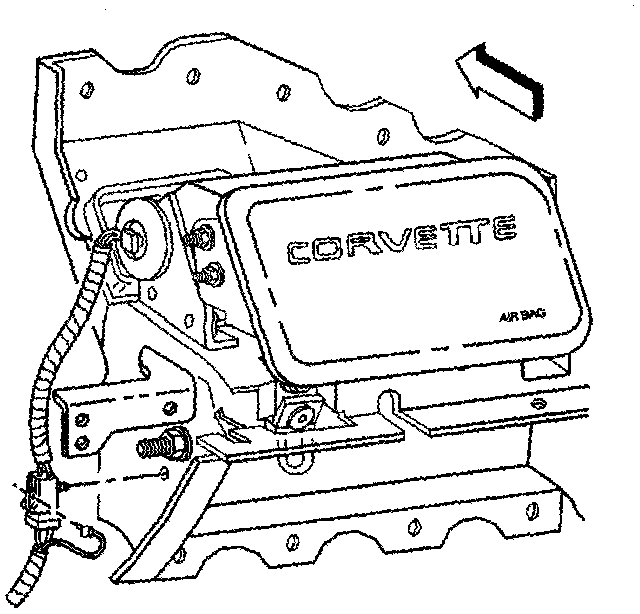

3. Remove the Connector Position Assurance (CPA) from the inflatable restraint I/P module harness connector.

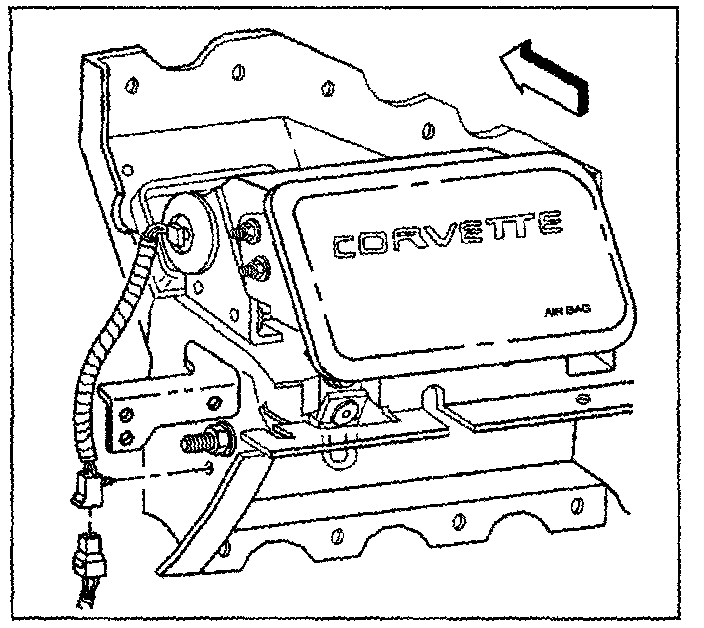

4. Disconnect the inflatable restraint I/P module pigtail connector.

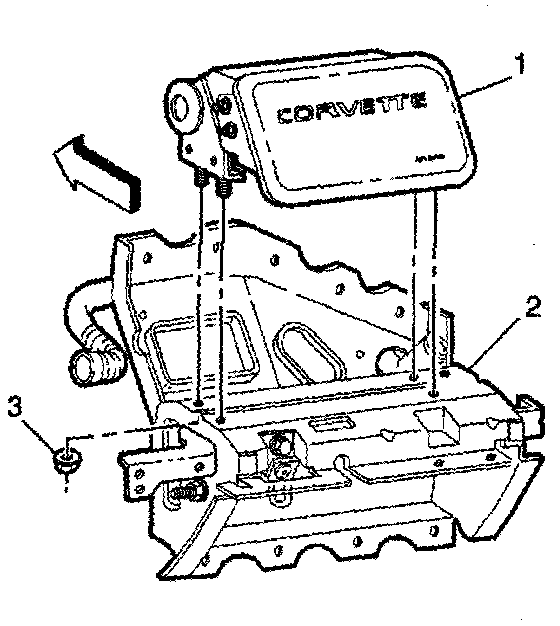

5. Remove the inflatable restraint I/P module mounting fasteners (3).
6. Remove the inflatable restraint I/P module (1) from the bracket (2).
