With Pump Operational

WARNING: Always wear safety goggles when working with fuel in order to protect the eyes from fuel splash.

1. Remove the left fuel rail cover.

Description:

2. Disconnect the fuel return hose (4) from the fuel rail.
3. Attach a length of flexible fuel hose to the fuel rail return pipe using a screw type clamp.
4. Insert the other end of the flexible fuel hose into an approved drain container.
5. Run the engine until the engine stalls.
6. Reconnect the fuel return hose (4) to the fuel rail.
7. Continue with this procedure if the right fuel tank still contains fuel.
8. Position an approved drain container under the right tank fuel sender.
9. Attach a length of flexible fuel hose to an air operated pump device.

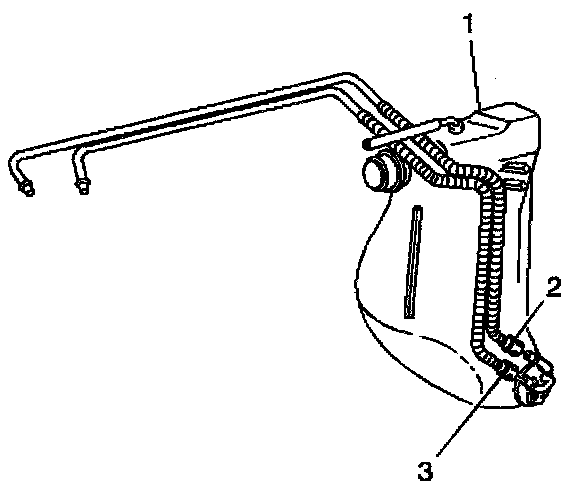

10. Wrap a shop towel around the fuel sender fuel feed pipe (3) (jet pump to left tank) at the right fuel sender.
11. Disconnect the fuel sender fuel feed pipe (3) (jet pump to left tank) at the right tank fuel sender.
12. Remove the plastic connector retainer from the fuel sender nipple.
13. Attach the flexible fuel hose from the pump device to the fuel sender nipple using a screw type clamp.
14. Drain the right tank until no fuel comes out.
15. Disconnect the pump device from the right tank fuel sender nipple.
16. Install the plastic connector retainer to the fuel sender nipple.
17. Plug or cap the fuel sender nipple and the fuel sender fuel feed pipe.
