Clutch Anticipate Switch Replacement
REMOVAL PROCEDURE1. Disconnect the negative battery cable.
2. Remove the LH I/P lower insulator panel.
3. Disconnect the clutch anticipate switch (cruise control release switch) electrical connector.

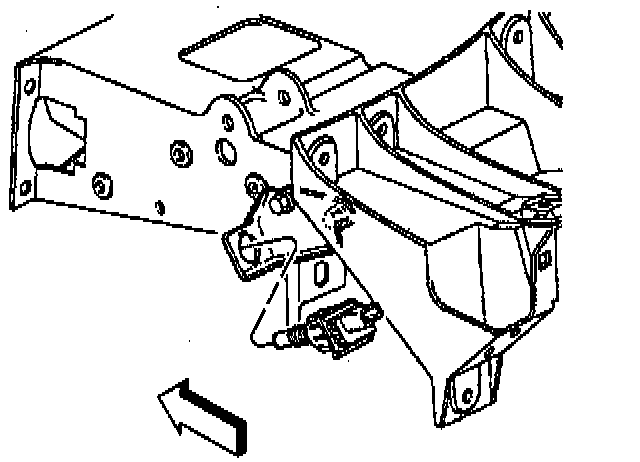

4. Remove the clutch anticipate switch (cruise control release switch) from the bracket.
INSTALLATION PROCEDURE
1. Install the clutch anticipate switch (cruise control release switch) to the bracket. Fully seat the switch to the bracket; audible clicks will be heard while pushing the switch.
2. Connect the clutch anticipate switch (cruise control release switch) electrical connector.
3. Adjust the clutch anticipate switch (cruise control release switch). Grasp the clutch pedal and pull fully rearward against the pedal stop; audible clicks may be heard as the switch moves into the adjusted position.
4. Install the LH I/P lower insulator panel.
5. Connect the negative battery cable.
- Tighten the negative battery cable bolt to 15 Nm (11 ft. lbs.).
NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
