Cigar Lighter/Auxiliary Outlets Schematics
Cigar Lighter/Auxiliary Outlets Schematics

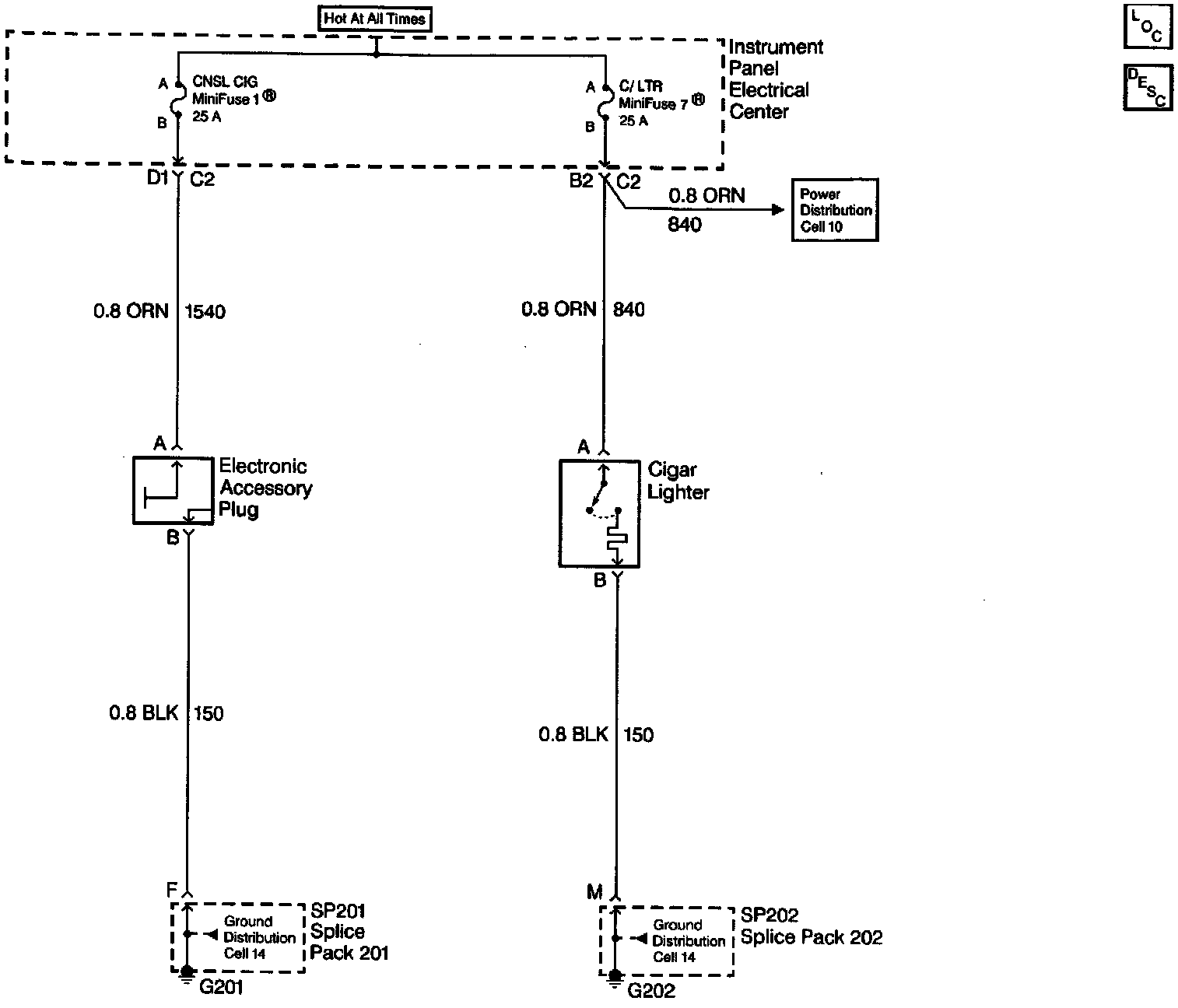

Cigar Lighter/Auxillary Outlets Schematics (Accessory Plug And Cigar Lighter):
