Underhood Lamp Replacement (Assembly)

REMOVAL PROCEDURE

Underhood Lamp Replacement (Assembly): Removal Procedure:

1. Open the hood.

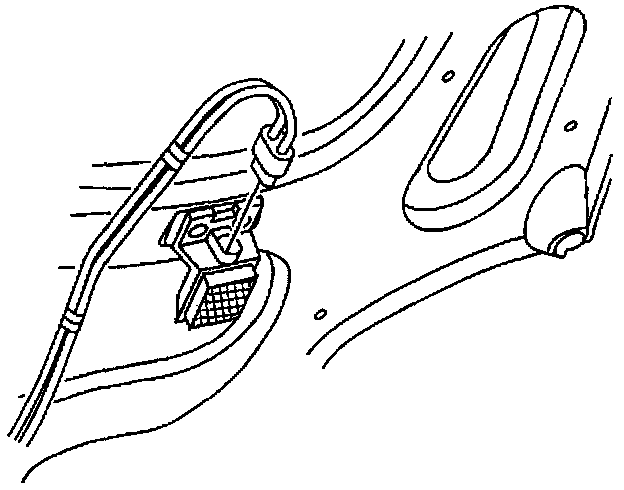

2. Disconnect the electrical connector from the underhood lamp assembly.

Underhood Lamp Replacement (Assembly): Removal Procedure:

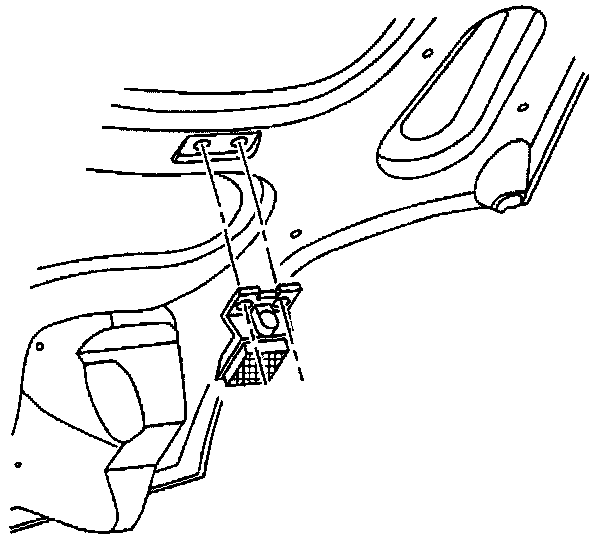

3. Drill out the two rivets retaining the underhood lamp assembly.
4. Remove the underhood lamp from the vehicle.

INSTALLATION PROCEDURE

Underhood Lamp Replacement (Assembly): Installation Procedure:

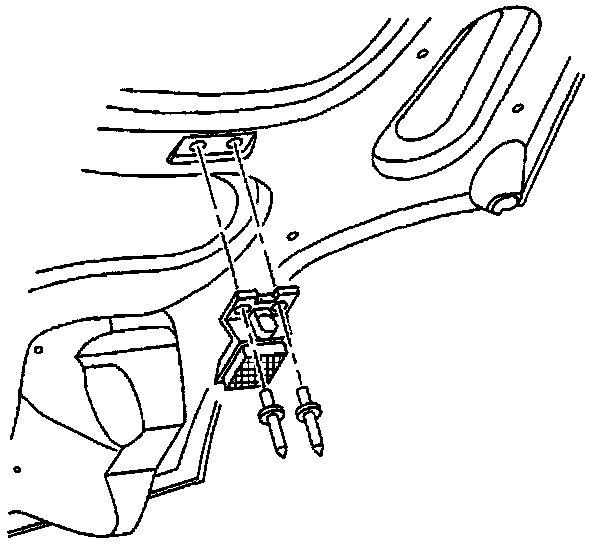

1. Install the underhood lamp assembly into position under the hood.
2. Install 2 new underhood lamp retaining rivets.

Underhood Lamp Replacement (Assembly): Installation Procedure:

3. Connect the electrical connector to the underhood lamp assembly.
4. Close the hood.
