Tail Lamps Replacement

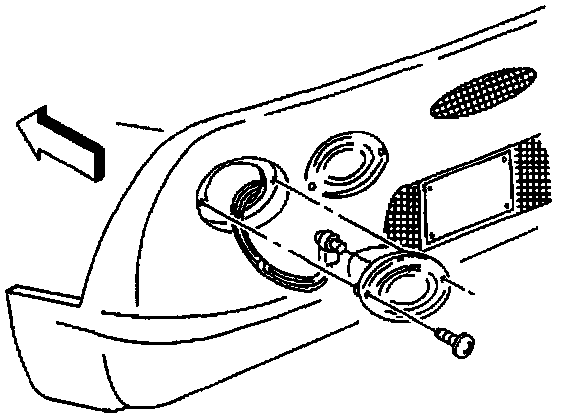

REMOVAL PROCEDURETaillamp Replacement: Removal Procedure:
1. Remove the screws retaining the taillamp assembly to the rear fascia.
2. Remove the taillamp from the fascia to gain access to the taillamp socket.
3. Remove the socket from the lamp assembly.
4. Remove the bulb from the socket, if replacing the bulb.
5. Remove the tail lamp from the vehicle.

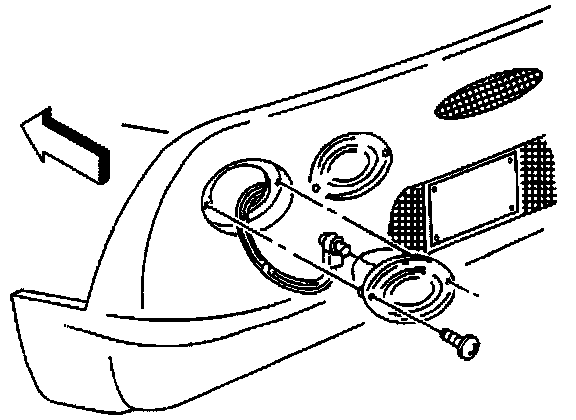

INSTALLATION PROCEDURE
Taillamp Replacement: Installation Procedure:
1. Install the bulb to the taillamp socket, if replacing the bulb.
2. Install the socket to the tail lamp assembly.
3. Position the taillamp assembly to the rear fascia.
4. Install the screws retaining the taillamp to the rear fascia.
Tighten
Tighten the taillamp retaining screws to 2 N.m (18 lb in).
NOTE: Refer to Fastener Notice in General Information.
