Daytime Running Lamp Control Unit: Service and Repair

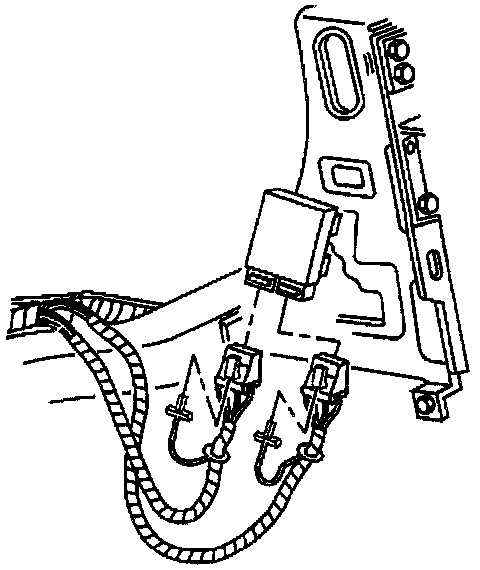

REMOVAL PROCEDUREDRL Control Module (Canada): Removal Procedure:
CAUTION: Refer to Battery Disconnect Caution in General In formation.
1. Disconnect the negative battery cable.
2. Remove the driver knee bolster trim panel.
3. Disconnect both of the Connector Position Assurance (CPA).
4. Disconnect the DRL module electrical connectors.

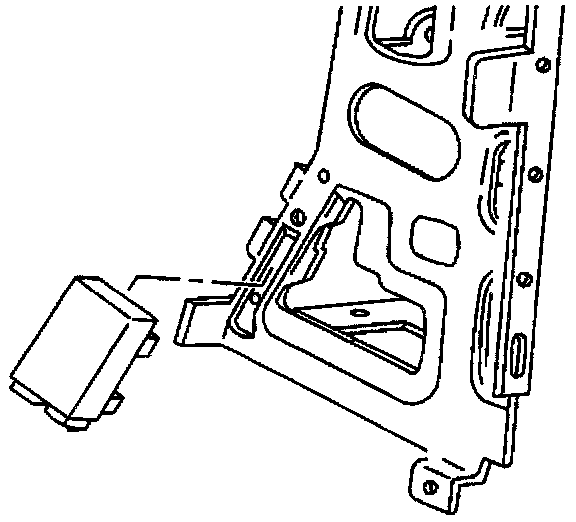

DRL Control Module (Canada): Removal Procedure:
5. Remove the DRL module from the I/P center support bracket. Release the tabs, then pull down on the module to release.
INSTALLATION PROCEDURE

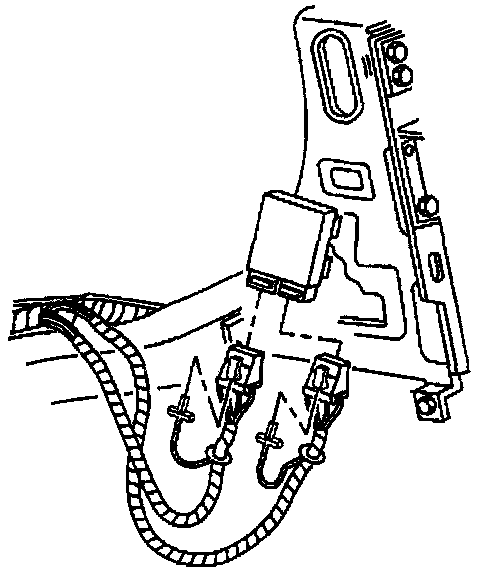

DRL Control Module (Canada): Installation Procedure:
1. Install the DRL module to the I/P center support bracket.
Align the module slots to the bracket tabs, then pull up to secure.

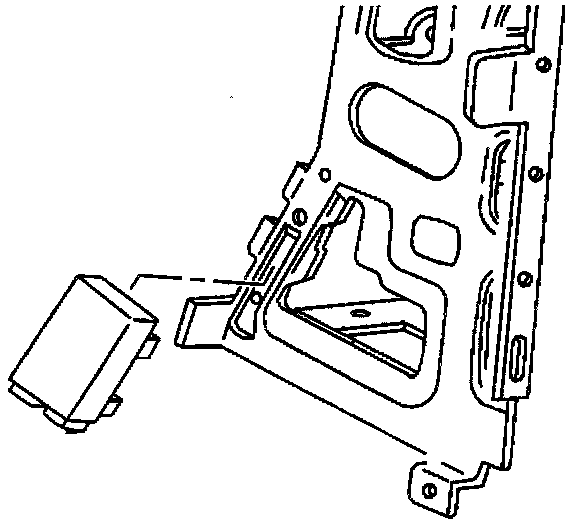

DRL Control Module (Canada): Installation Procedure:
2. Connect the module electrical connectors
3. Connect both the CPA.
4. Install the driver knee bolster trim panel.
Tighten
Tighten the negative battery cable boll to 15 N.m (11 lb ft).
NOTE: Refer to Fastener Notice in General Information.
