Rear Fog Lamp Bulb Replacement (Europe)

REMOVAL PROCEDURE

Rear Fog Lamp Bulb Replacement (Europe): Removal Procedure:

1. Remove the tail/turn signal lamp. Refer to Tail/Turn Signal Lamp Replacement (Europe, Japan).

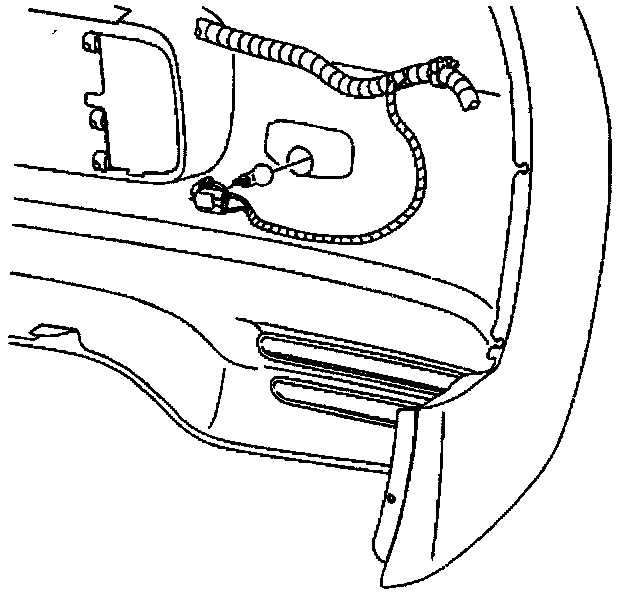

2. Remove the rear fog lamp socket from the rear fog lamp assembly.
Access the sidemarker lamp through the taillamp opening.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE

Rear Fog Lamp Bulb Replacement (Europe): Installation Procedure:

1. Install the bulb to the socket.

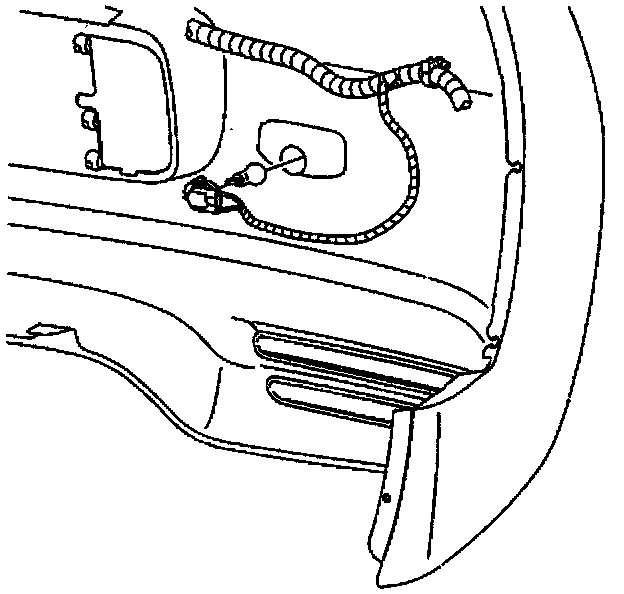

2. Install the socket to the lamp.
3. Install the tail/turn signal lamp. Refer to Tail/Turn Signal Lamp Replacement (Europe, Japan).
