Daytime Running Lamp Control Unit: Diagrams

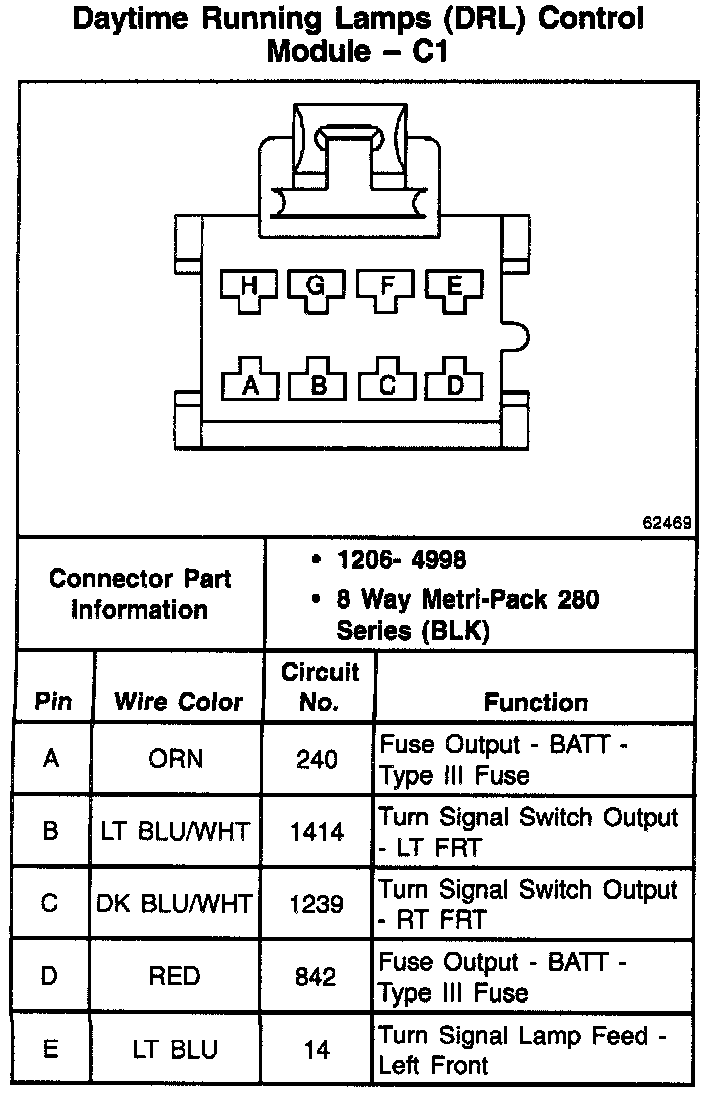

Daytime Running Lamps (DRL) Control Module - C1 (Part 1 Of 2):

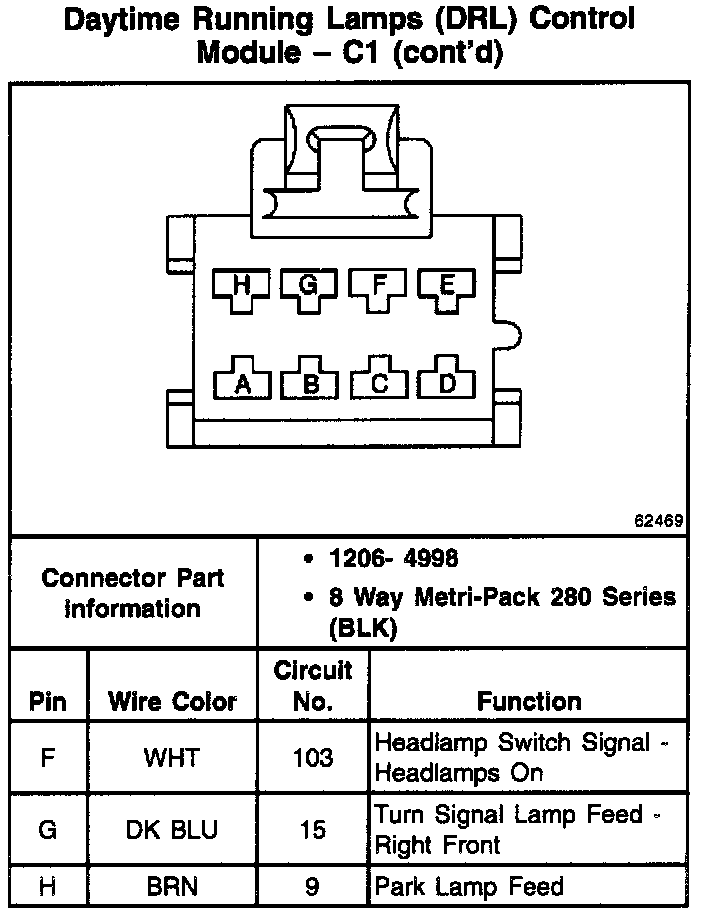

Daytime Running Lamps (DRL) Control Module - C1 (Part 2 Of 2):

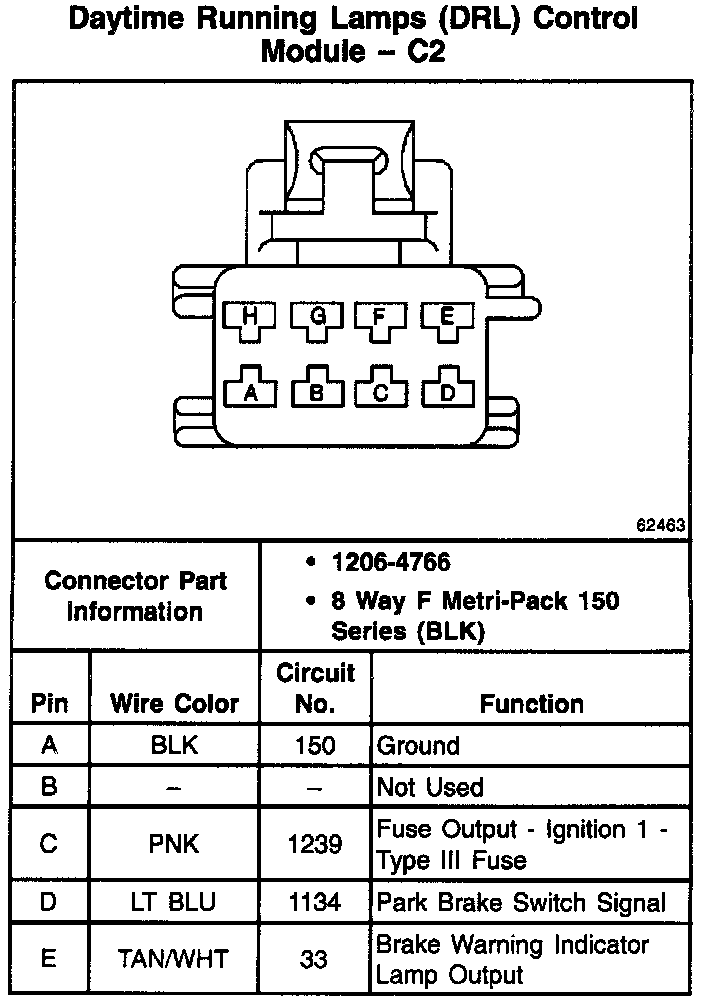

Daytime Running Lamps (DRL) Control Module - C2 (Part 1 Of 2):

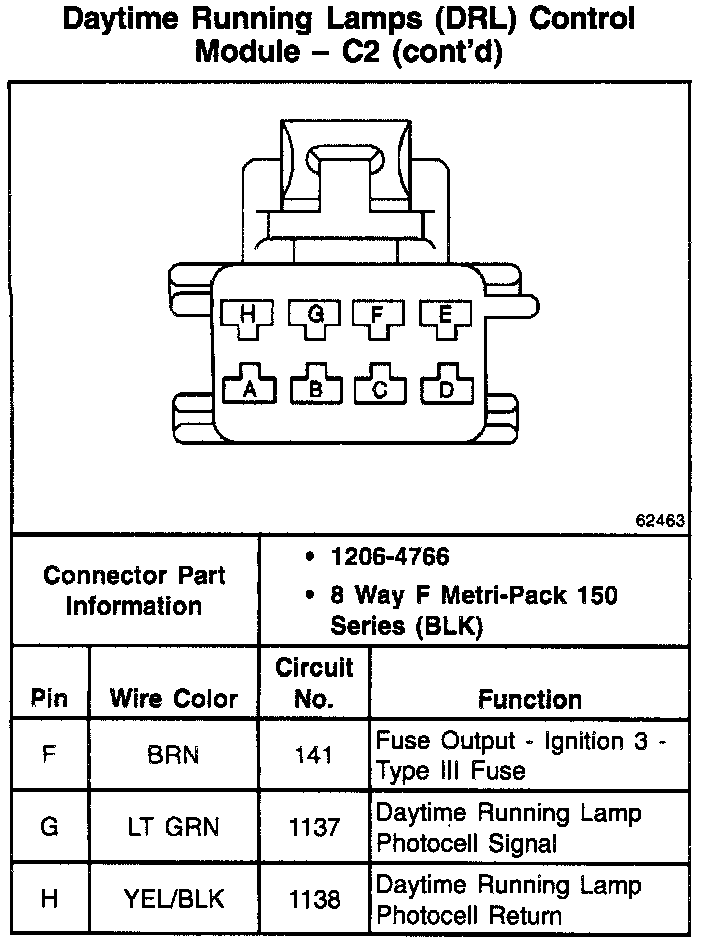

Daytime Running Lamps (DRL) Control Module - C2 (Part 2 Of 2):
