Cargo Lamp Replacement

REMOVAL PROCEDURE

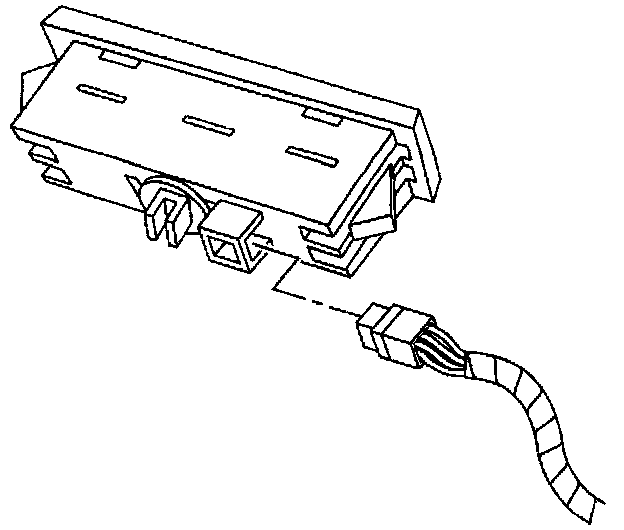

Cargo Lamp Replacement (Assembly): Removal Procedure:

1. Open the rear lift window.
2. Remove the cargo lamp assembly from the cargo area corner carpet section.
Grasp the cargo lamp lens and lift the outer edge upward, then pull to release.

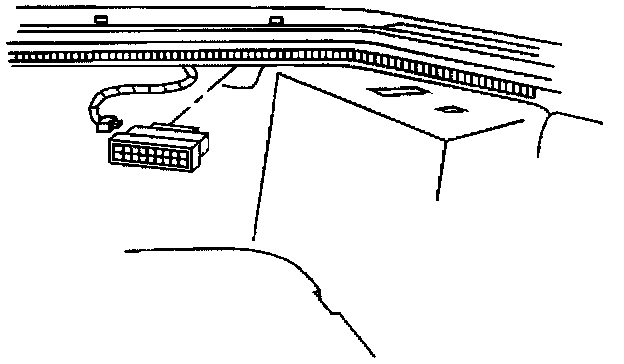

Cargo Lamp Replacement (Assembly): Removal Procedure:

3. Disconnect the electrical connector from the lamp.

INSTALLATION PROCEDURE

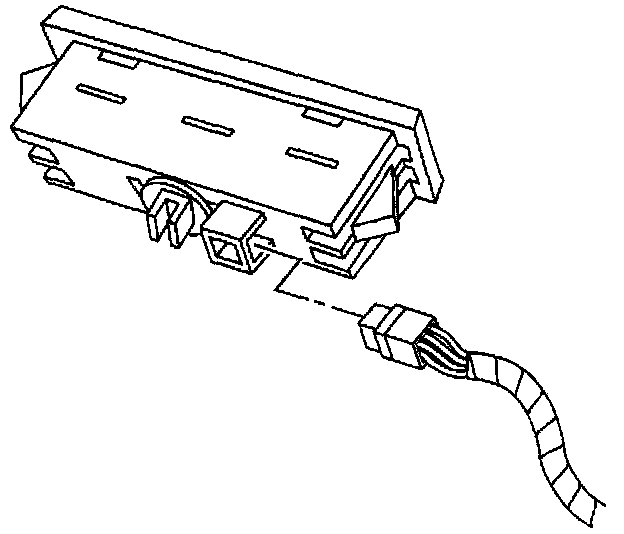

Cargo Lamp Replacement (Assembly): Installation Procedure:

1. Connect the electrical connector to the lamp.

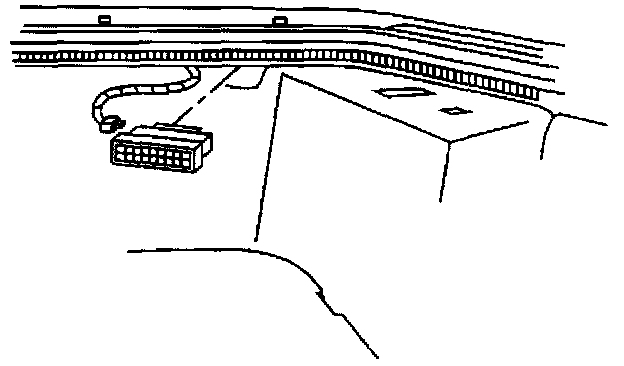

Cargo Lamp Replacement (Assembly): Installation Procedure:

2. Install the cargo lamp assembly to the cargo area corner carpet section.
2.1. Grasp the cargo lamp lens and insert the lamp assembly just above the slot in the corner carpet section.
2.2. Lower the lamp assembly into place, push the lamp into the carpet if the lamp retaining tabs do not catch.
3. Close the rear lift window.
