Backup Light Bulb: Service and Repair

REMOVAL PROCEDURE

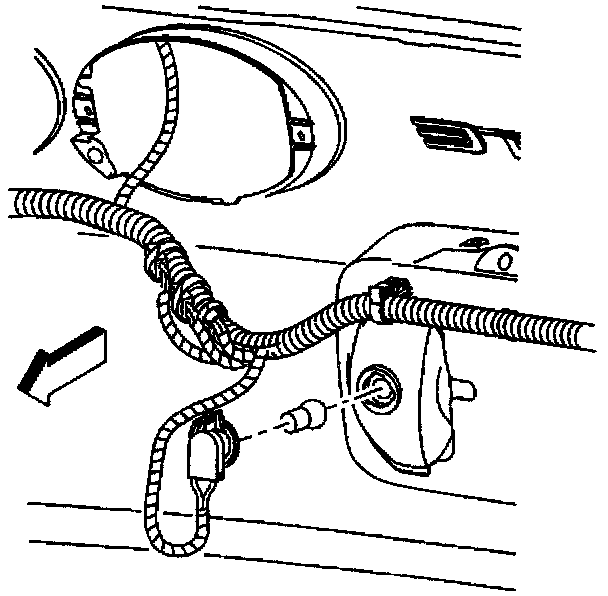

Backup Lamp Replacement (Bulb): Removal Procedure:

1. Remove the nearest inner taillamp. Access the backup lamp through the taillamp opening.
2. Remove the backup lamp socket from the backup lamp assembly.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE

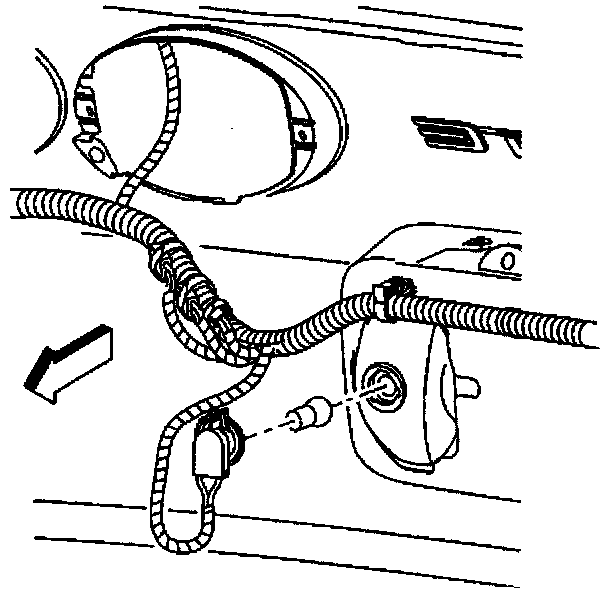

Backup Lamp Replacement (Bulb): Installation Procedure:

1. Install the bulb to the backup lamp socket.
2. Install the backup lamp socket to the backup lamp assembly.
3. Install the inner taillamp.
