Floor Air Outlet Duct Replacement, RH Rear
REMOVAL PROCEDUREFloor Air Outlet Duct Replacement (RH Rear): Removal Procedure:
1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the driver knee bolster trim panel.

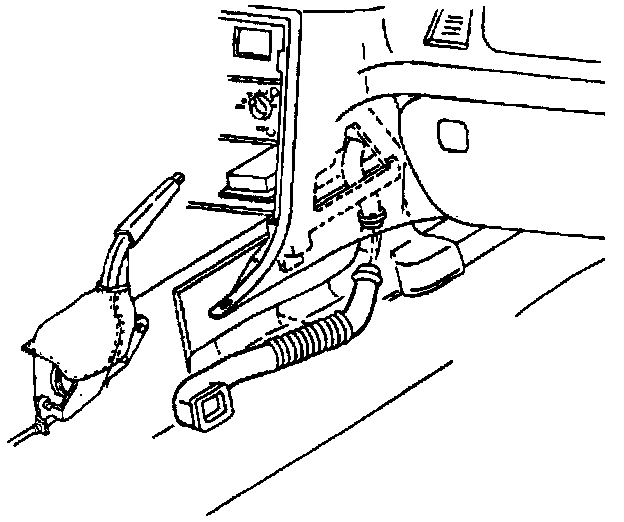

4. Remove the I/P passenger compartment.
5. Remove the I/P upper trim pad.
6. Pull the front floor carpet away from the RH side of the driveline tunnel to access the carpet air outlet duct.
7. Release the carpet air outlet duct from the floor air outlet duct - RH.
Use a twisting motion to release the carpet duct from the floor duct.
Floor Air Outlet Duct Replacement (RH Rear): Removal Procedure:

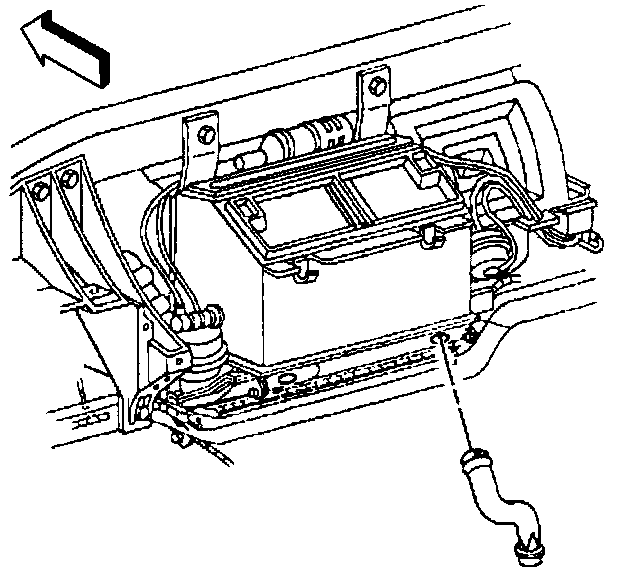

8. Using a flat bladed screwdriver, CAREFULLY release the floor air outlet rear duct - RH from the HVAC module.
9. Lower the duct down between the I/P center support bracket and the side of the driveline tunnel, then remove the duct.
INSTALLATION PROCEDURE
Floor Air Outlet Duct Replacement (RH Rear): Installation Procedure:

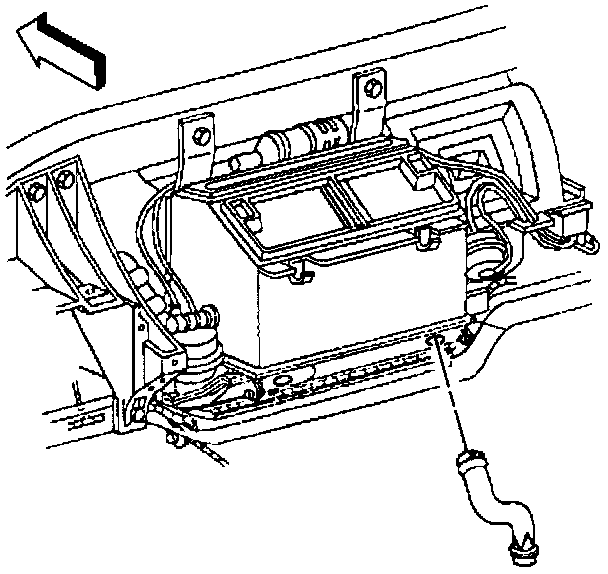

1. Insert the floor air outlet rear duct - RH up between the I/P center support bracket and the side of the driveline tunnel, then position the duct to the HVAC module.
2. Align the floor duct to the HVAC module, then push firmly and evenly to secure the duct.
Floor Air Outlet Duct Replacement (RH Rear): Installation Procedure:

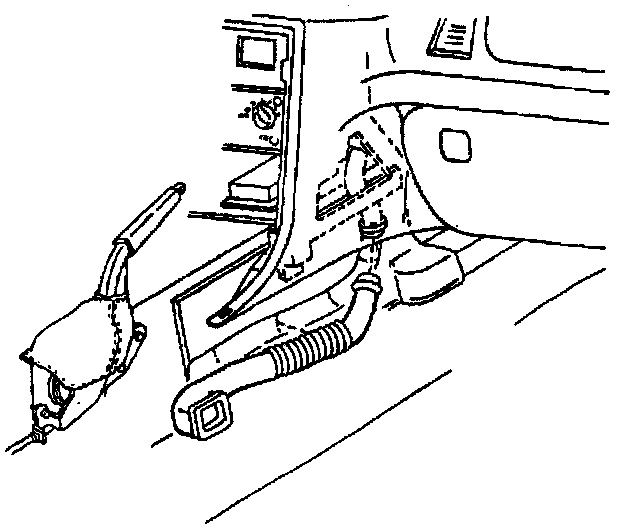

3. Secure the carpet air outlet duct to the floor air outlet duct - RH.
Use a twisting motion to secure the carpet duct to the floor duct.
4. Position the front floor carpet to the RH side of the driveline tunnel.
5. Install the I/P upper trim pad.
6. Install the I/P passenger compartment.
7. Install the driver knee bolster trim panel.
8. Install the I/P accessory trim plate.
9. Install the console.
