Floor Air Outlet Duct Replacement, LH Front

REMOVAL PROCEDURE

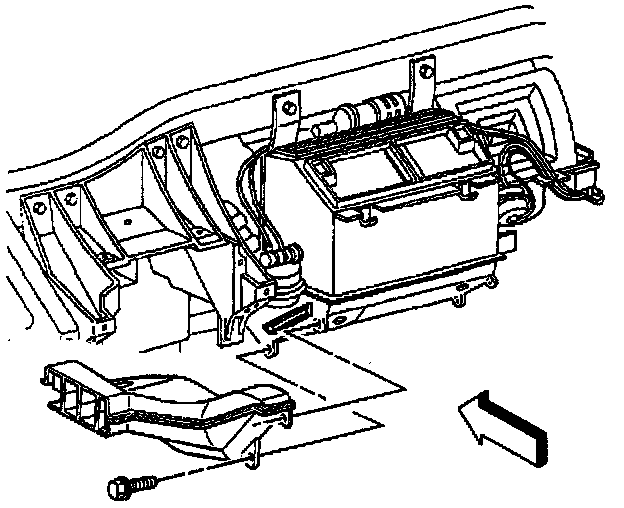

Floor Air Outlet Duct Replacement (LH): Removal Procedure:

1. Remove the LH lower closeout panel.
2. Remove the screws retaining the floor air outlet duct.
3. Remove the floor duct.

INSTALLATION PROCEDURE

Floor Air Outlet Duct Replacement (LH): Installation Procedure:

1. Install the floor air outlet duct into position.
2. Install the floor air outlet duct retaining screws.

Tighten
Tighten the floor air outlet duct retaining screws to 1.6 N.m (14 lb in).

NOTE: Refer to Fastener Notice in General Information.

3. Install the LH lower closeout panel.
