9. Valve Rocker Arm Covers, Push Rod, and Pivot
VALVE ROCKER ARM COVERLeft Side
NOTE: Do not remove the ignition coils from the valve rocker arm cover unless required. Do not remove the vent valve grommet from the cover unless service is required. If the vent valve grommet has been removed from the cover, a NEW grommet must be installed.
1. Remove the crankcase vent vacuum tube from the grommet.

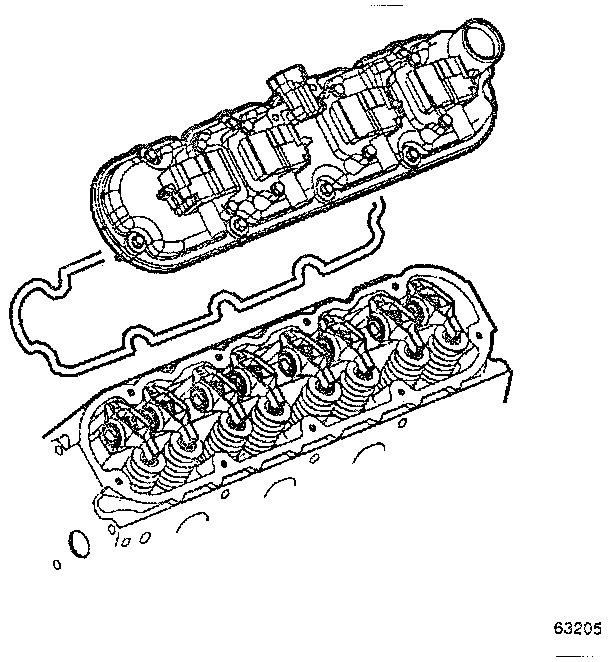

2. Remove the valve rocker arm cover bolts.
3. Remove the valve rocker arm cover.

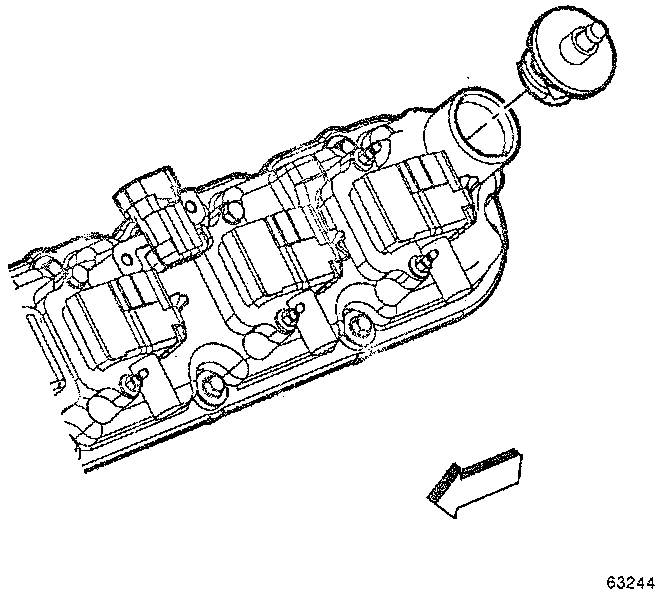

4. Remove the crankcase vent valve grommet from the left cover (if required).
5. Discard the vent valve grommet.
6. Remove the ignition coil wire harness (if required).

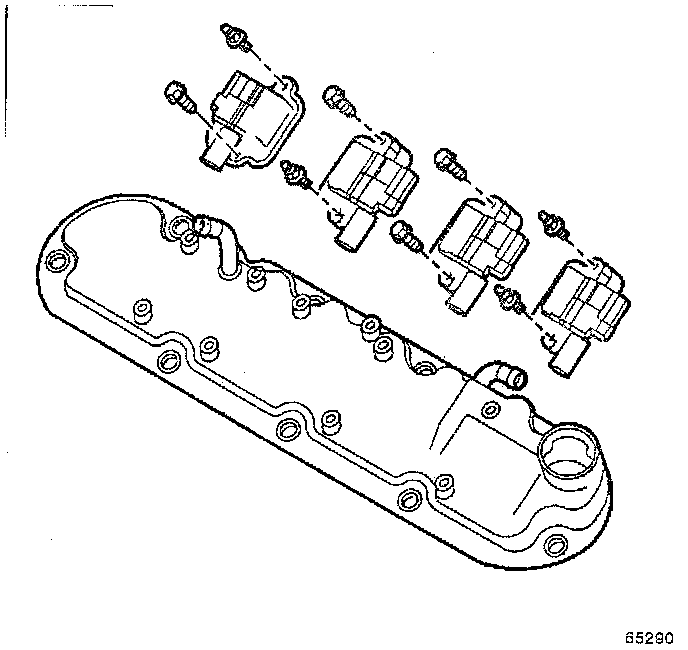

7. Remove the ignition coils and bolts from the cover (if required).
8. Remove the gasket and bolt grommets from the cover.
9. Discard the gasket. The bolt grommets may be reused if not damaged.
Right Side

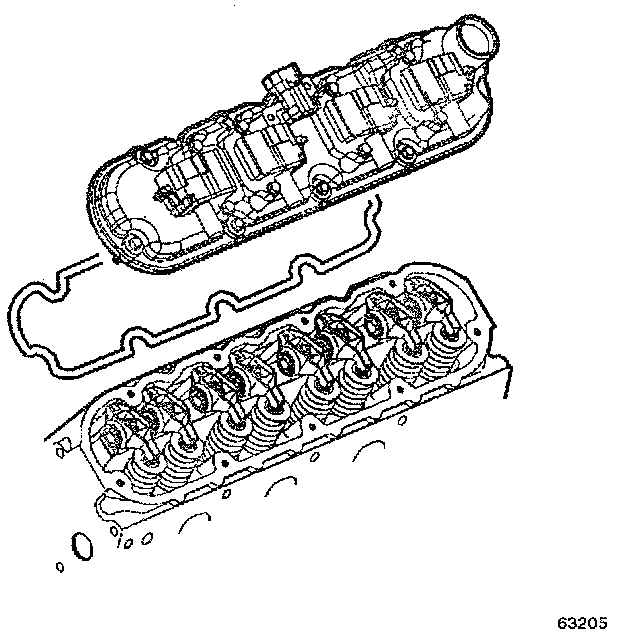

1. Remove the valve rocker arm cover bolts.
2. Remove the valve rocker arm cover.

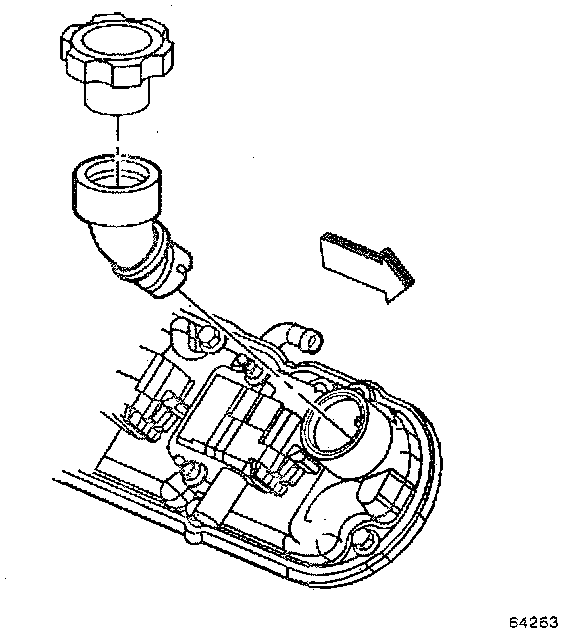

3. Remove the oil fill cap from the oil fill tube.
4. Remove the oil fill tube (if required).
5. Discard the oil fill tube.
6. Remove the gasket and bolt grommets from the cover.
7. Remove the ignition coil wire harness (if required).

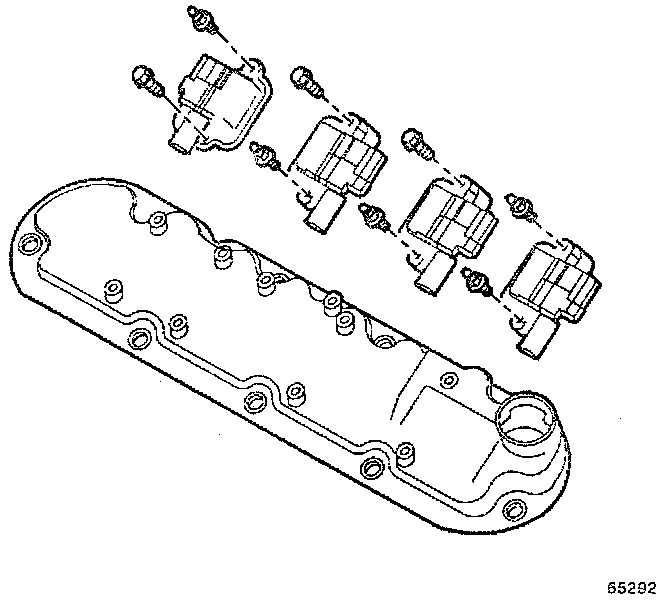

8. Remove the ignition coils and bolts (if required).
9. Discard the gasket. The bolt grommets may be reused if not damaged.
VALVE ROCKER ARM, PUSH ROD, AND PIVOT
NOTE: Place valve rocker arms, valve pushrods, and pivot support, in a rack so that they can be installed in the same location from which they were removed.

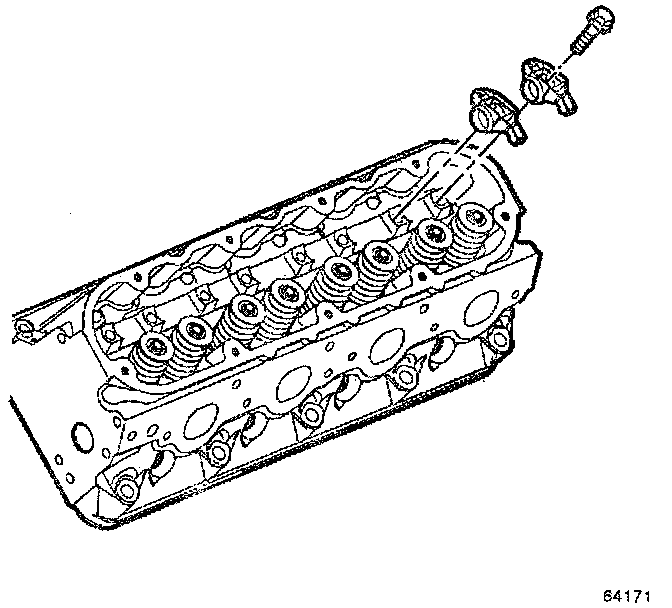

1. Remove the valve rocker arm bolts.
2. Remove the valve rocker arms.
3. Remove the valve rocker arm pivot support.

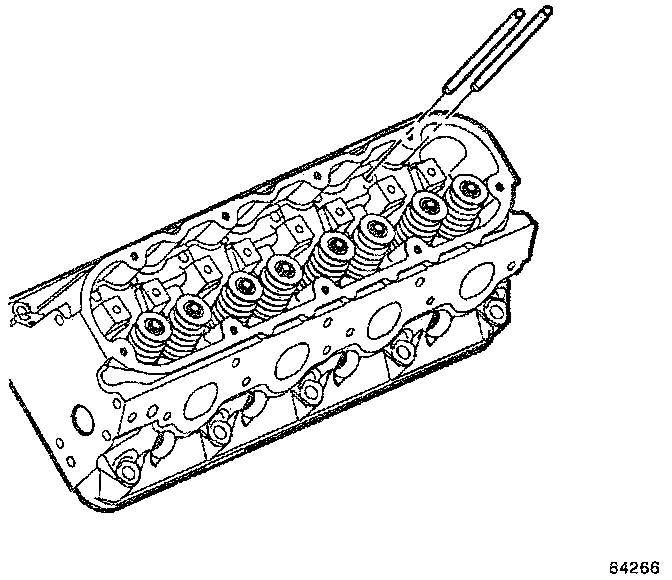

4. Remove the pushrods.
