13. Front Cover, Oil Pump, Rear Cover and Pump Screen

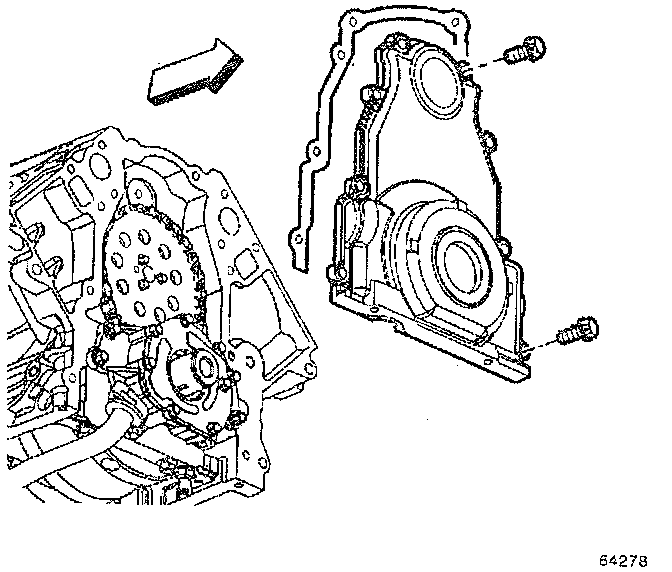

FRONT COVER
1. Remove the front cover bolts.
2. Remove the front cover and gasket.
3. Discard the front cover gasket.

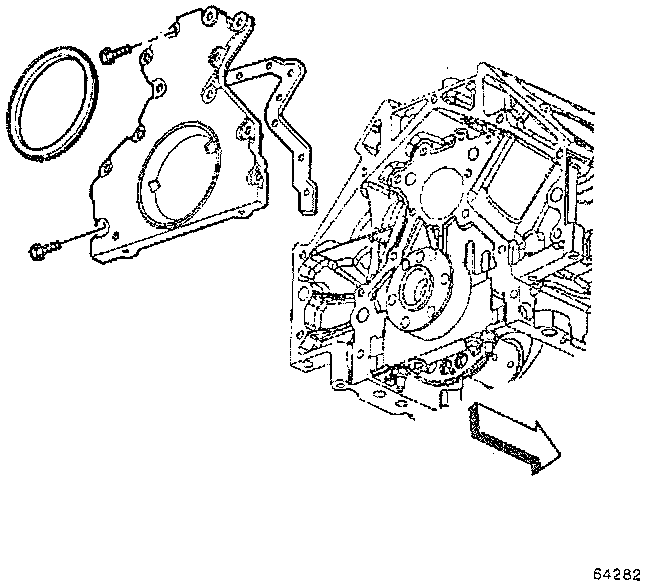

REAR COVER
1. Remove the rear cover bolts.
2. Remove the rear cover and gasket.
3. Discard the rear cover gasket.

OIL PUMP, PUMP SCREEN AND DEFLECTOR

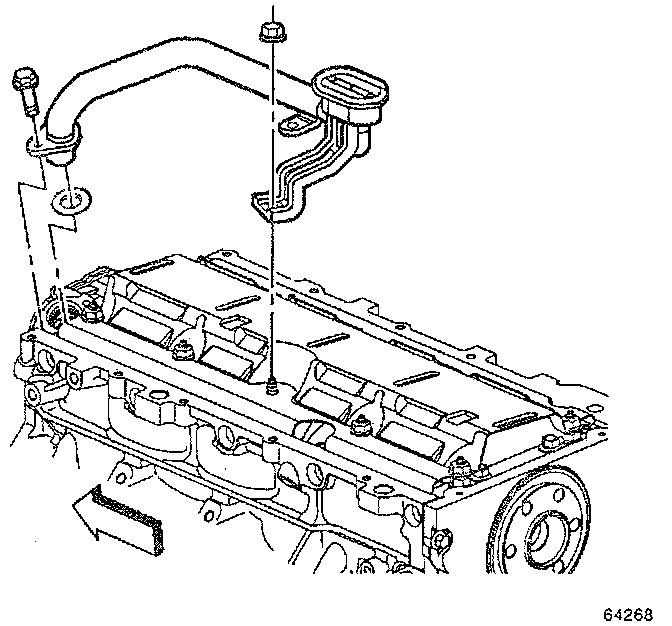

1. Remove the oil pump screen bolt and nuts.
2. Remove the oil pump screen with O-ring seal.
3. Remove the O-ring seal from the pump screen.
4. Discard the O-ring seal.

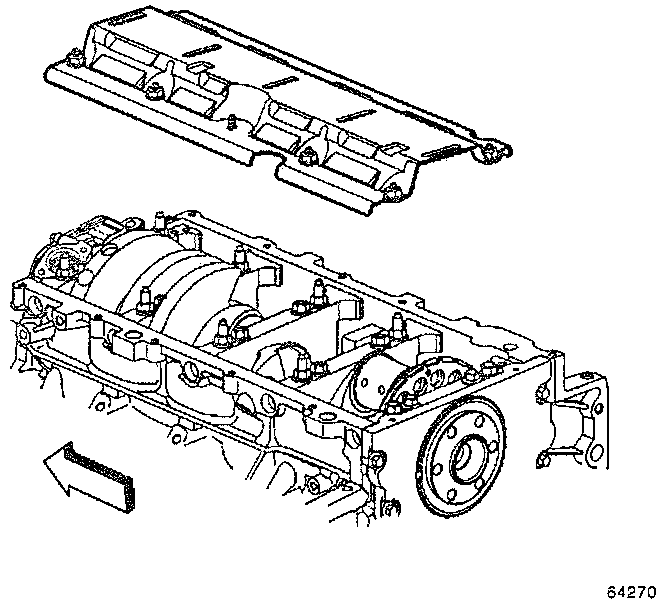

5. Remove the remaining crankshaft oil deflector nuts.
6. Remove the crankshaft oil deflector.

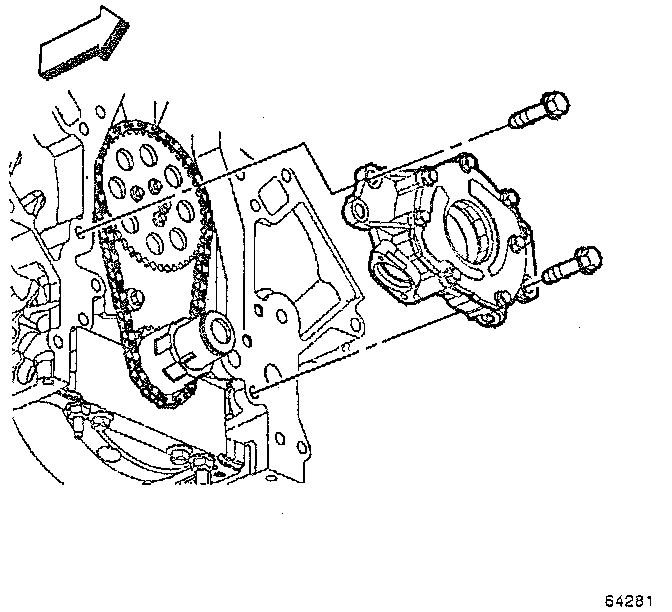

7. Remove the oil pump bolts.

NOTE: Do not allow dirt or debris to enter the oil pump assembly, cap ends as necessary.

8. Remove the oil pump.
