Vapor Vent Pipe Replacement

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the intake manifold.
3. Disconnect the knock sensor wire harness retaining clips from the tube.

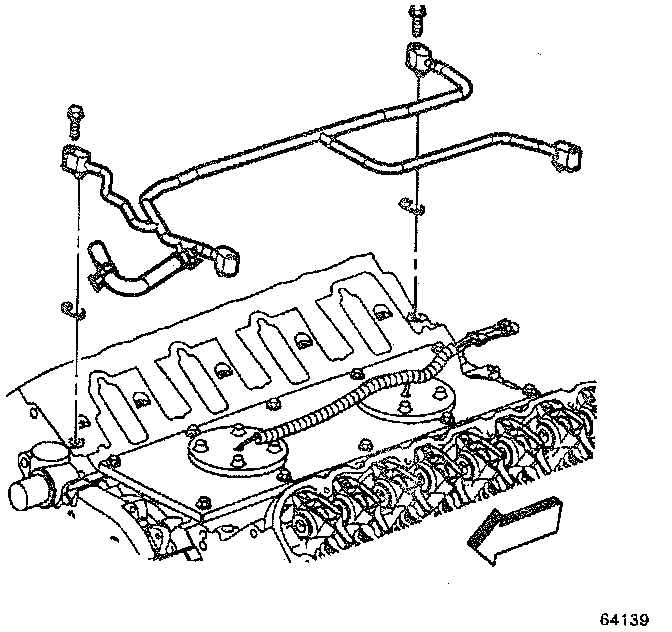

4. Remove the vapor vent pipe, bolts and gaskets.
5. Discard the gaskets.

INSTALLATION
1. Install the vapor vent pipe.
2. Install the intake manifold.
3. Connect the negative battery cable. Tighten the negative battery cable bolt to 15 Nm (11 ft. lbs.).
