Right Side

TOOL REQUIRED
^ J 36660 Torque Angle Meter.





REMOVAL
1. Disconnect the negative battery cable.
2. Remove the valve rocker arms, pedestals and pushrods.
3. Remove the RH exhaust manifold from the cylinder head. See Exhaust System.
4. Remove the intake manifold.
5. Remove the vapor vent pipe from the engine.

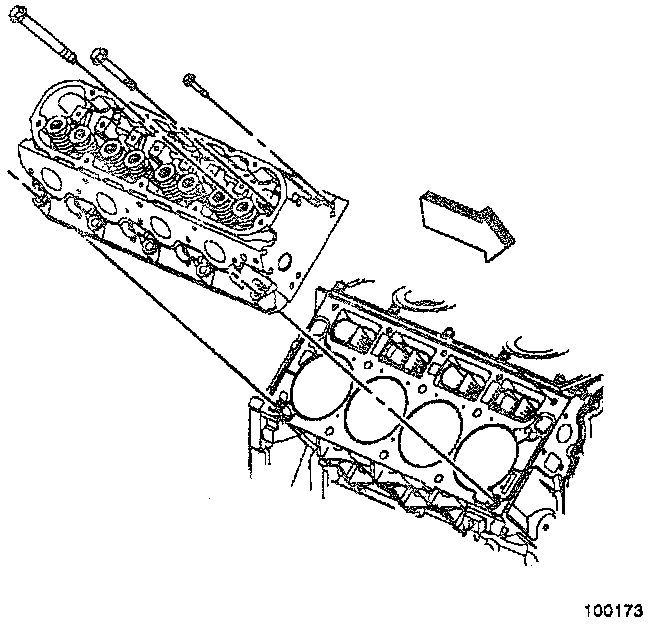

6. Remove the RH cylinder head from the engine.

INSTALLATION
1. Install the RH cylinder head to the engine.
2. Install the exhaust manifold. See Exhaust System.
3. Install the valve rocker arms, pedestal, and valve pushrods.
4. Install the vapor vent pipe to the engine.
5. Install the intake manifold.
6. Connect the negative battery cable. Tighten the bolt to 15 Nm (11 ft. lbs.).
7. Inspect for any leaks.
