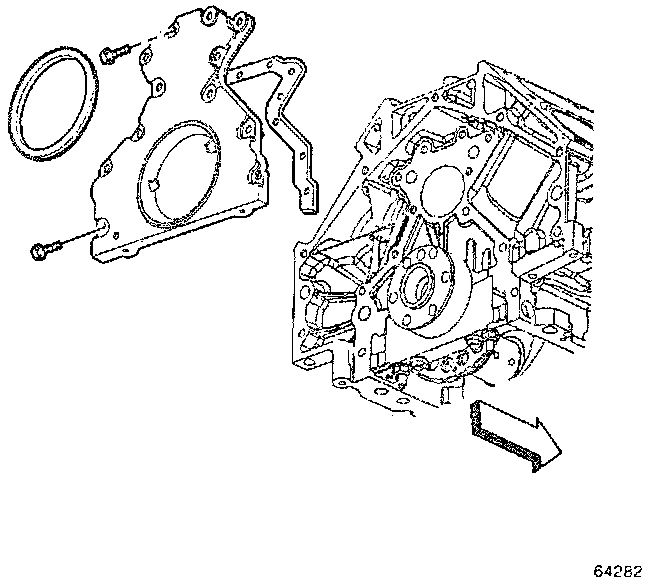

Rear Engine Plate: Testing and Inspection

NOTE: Do not reuse the crankshaft oil seals. Install NEW crankshaft oil seals during assembly. Do not reuse the rear cover-to-engine block gasket. Install NEW gaskets during assembly.





1. Remove the crankshaft oil seal from the rear cover.
2. Clean the cover in solvent. Remove the sealant from the oil pan sealing surfaces.

WARNING: Wear safety glasses in order to avoid eye damage.

3. Dry the covers with compressed air.
4. Inspect the gasket sealing surfaces for excessive scratches or gouging.
5. Inspect the cover-to-oil pan threaded bolt holes for damaged threads or debris.
6. Inspect the crankshaft oil seal mounting bore for damage.
