Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

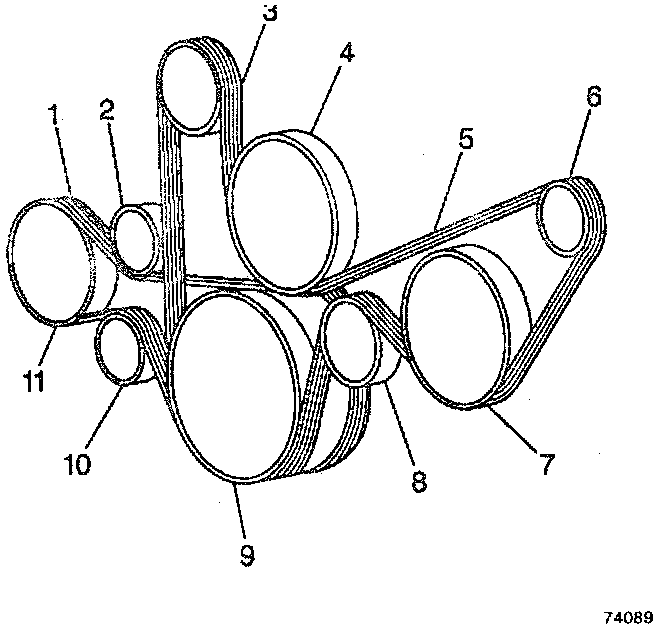

2. Release the accessory drive belt tensioner (3).





3. Remove the drive belt (5) from the engine.
4. Remove the power steering gear from the vehicle. See Steering and Suspension.
5. Remove the starter motor. See Starting and Charging.

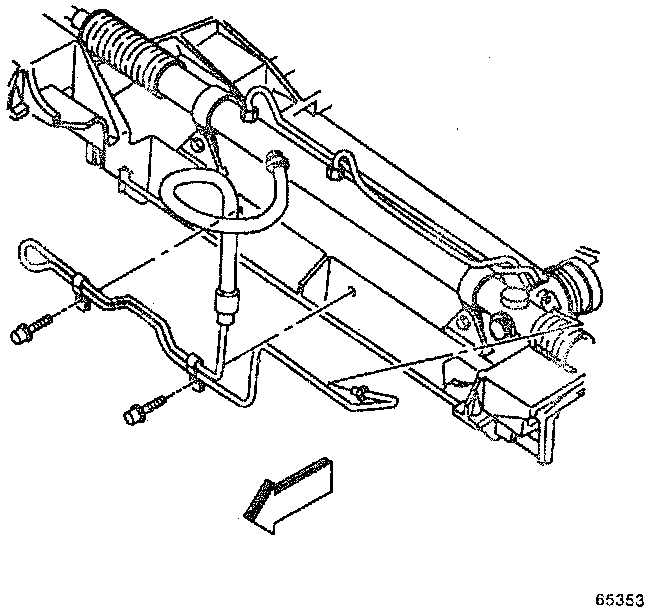

6. Remove the power steering cooler bolts from the front crossmember.
7. Remove the power steering cooler from the front crossmember and reposition.

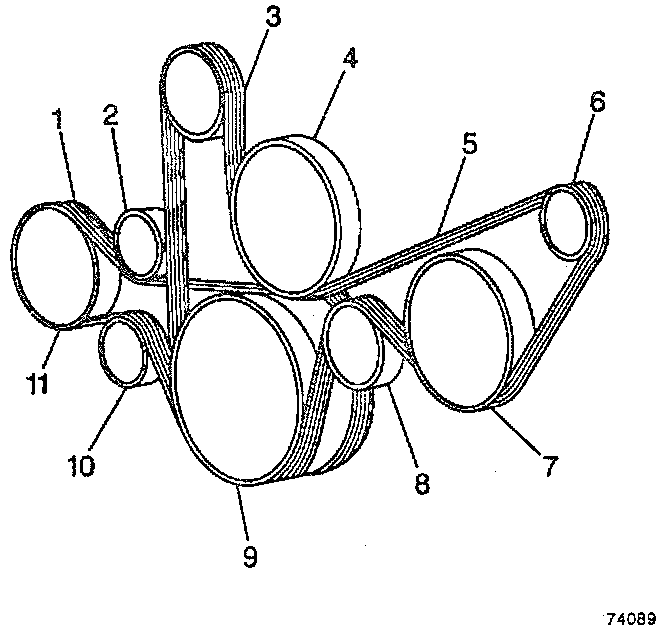

8. Release the A/C belt tensioner (10).
9. Remove the A/C drive belt (1) from the engine.
10. Remove the crankshaft balancer.

INSTALLATION
1. Install the crankshaft balancer.

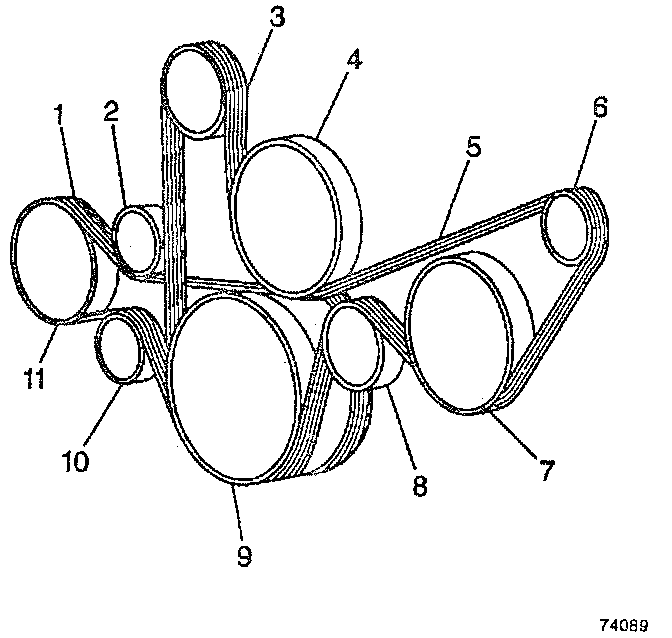

2. Install the A/C drive belt (1) to the engine.
3. Install the power steering gear. See Steering and Suspension.

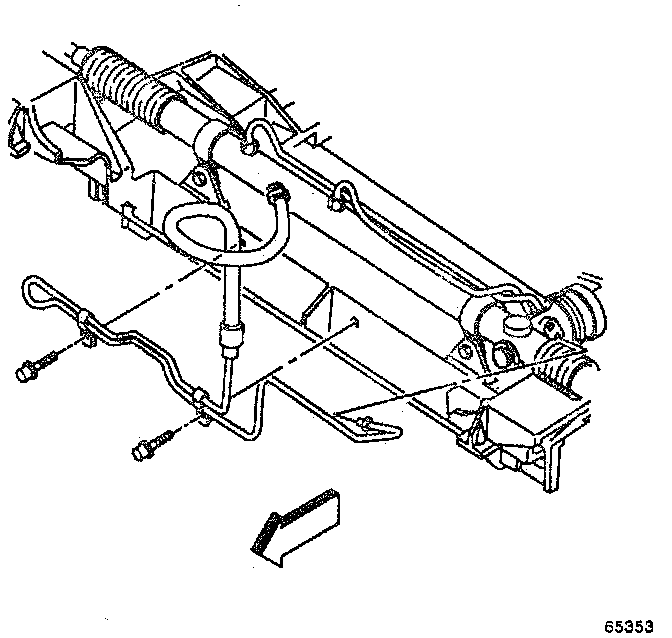

4. Install the power steering cooler to the front crossmember.
5. Install the power steering cooler bolts. Tighten the power steering bolts to 11 Nm (97 inch lbs.).
6. Install the starter motor. See Starting and Charging.
7. Lower the vehicle.
8. Install the accessory drive belt (5) to the engine.
9. Connect the negative battery cable. Tighten the negative battery cable bolt to 15 Nm (11 ft. lbs.).
