Outlet

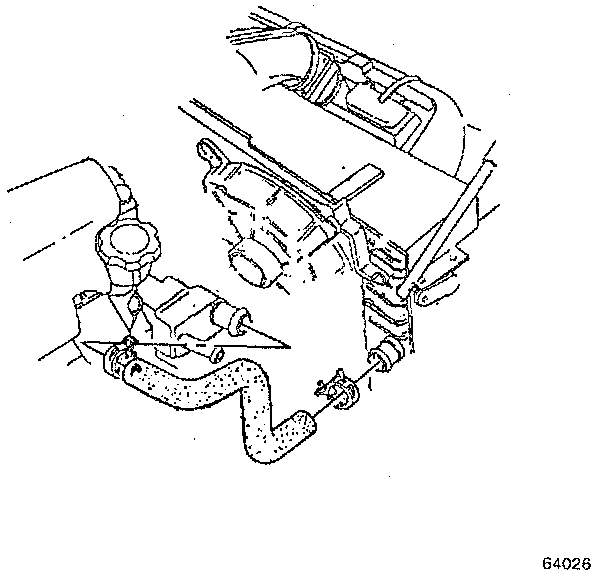

REMOVAL

^ Tools Required - J 38185 Spring Hose Clamp Pliers, or equivalent

1. Drain the cooling System.
2. Remove the radiator outlet hose clamps.
3. Remove the radiator outlet hose.

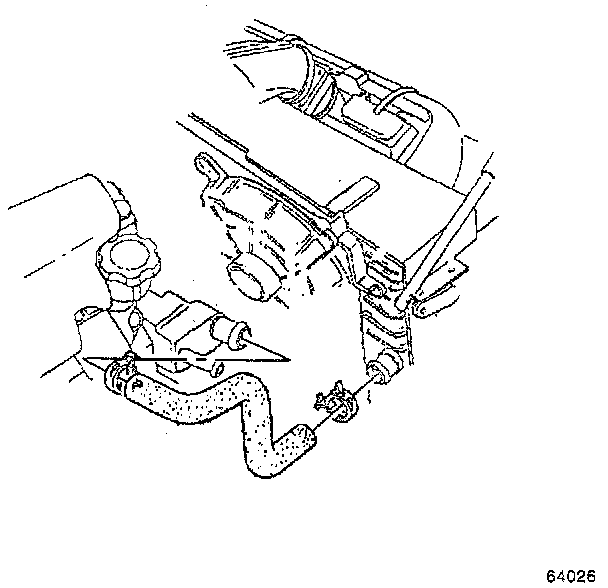

INSTALLATION
1. Install the radiator outlet hose.
2. Install the radiator outlet hose clamps.
3. Fill the cooling system.
