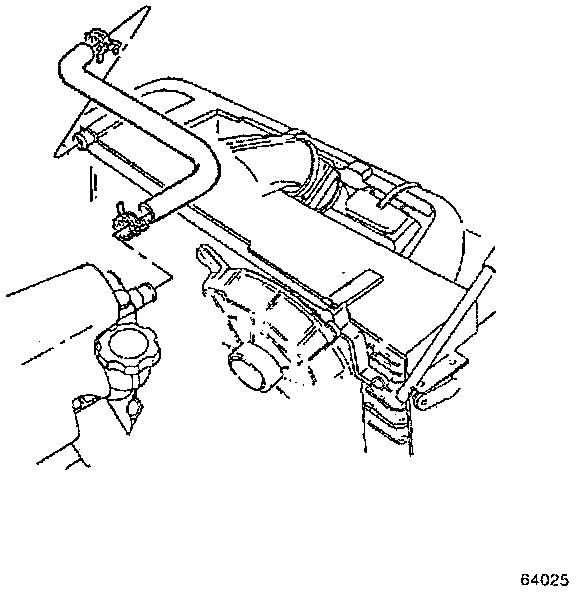

Inlet

REMOVAL

^ Tools Required - J 38185 Spring Hose Clamp Pliers, or equivalent

1. Drain the cooling system.
2. Remove the radiator support.
3. Remove the radiator inlet hose clamps.
4. Remove the radiator inlet hose.

INSTALLATION
1. Install the radiator inlet hose.
2. Install the radiator inlet hose clamps.
3. Install the upper radiator support.
4. Fill the cooling system.
