Home
>>
Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Rear Compartment Lid Release
Rear Compartment Lid Release

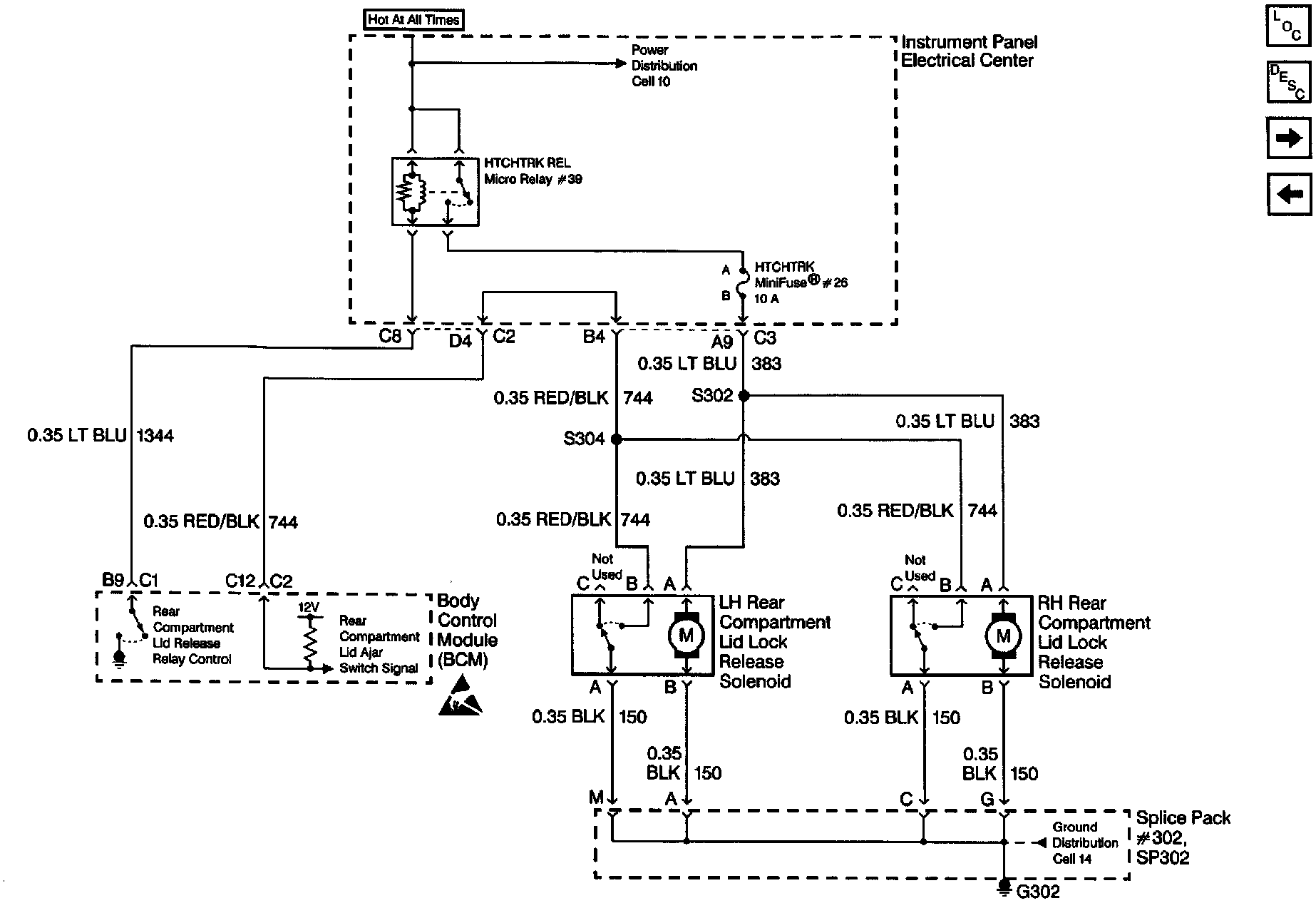

Release System Schematic: Rear Compartment Lid Release:
