Suspension Control ( Automatic - Electronic )
>>

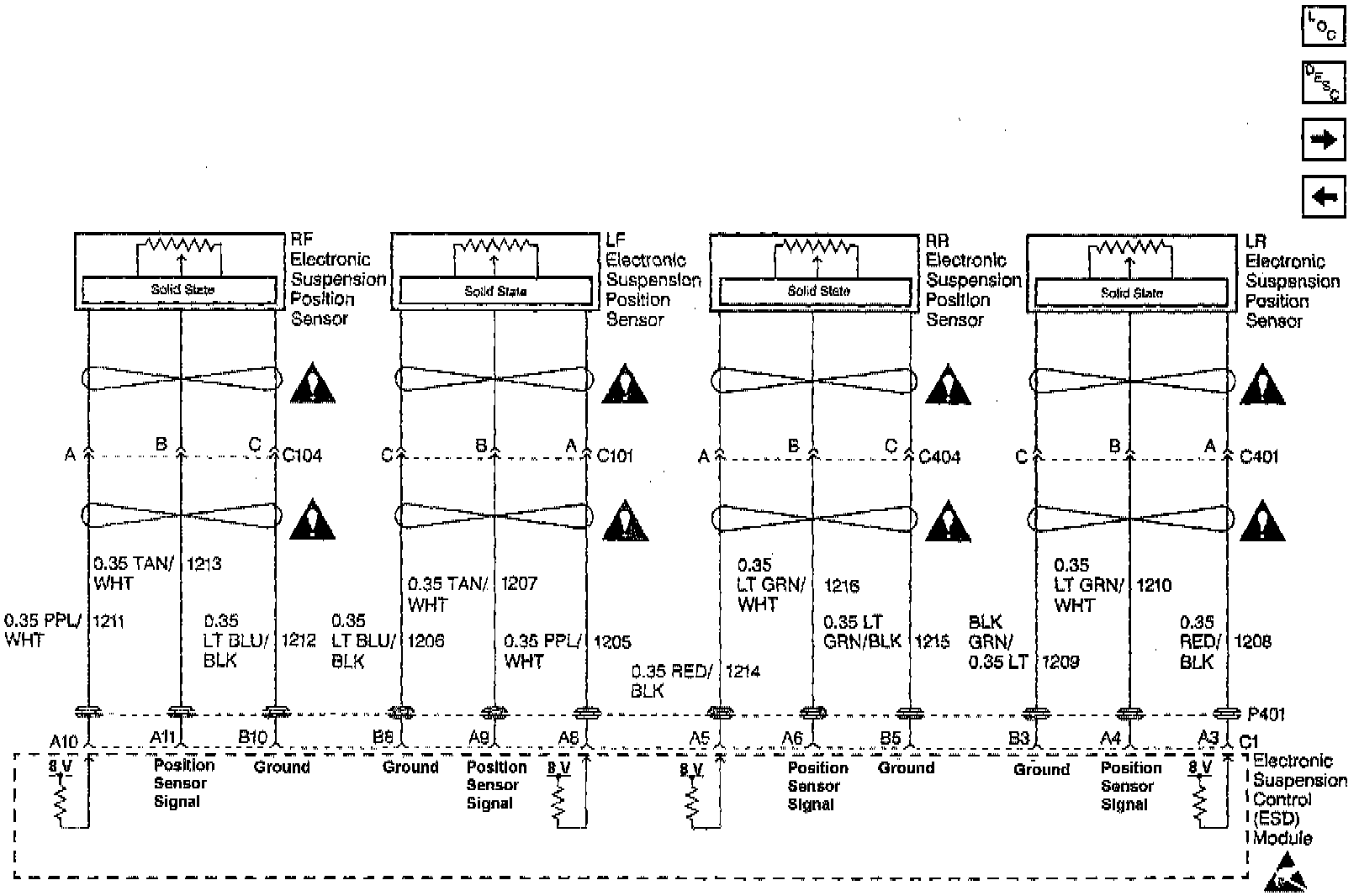

Suspension Controls (Cell 43: Sensor Input)
Suspension Controls (Cell 43: Sensor Input)
