Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension Control ( Automatic - Electronic )
>>

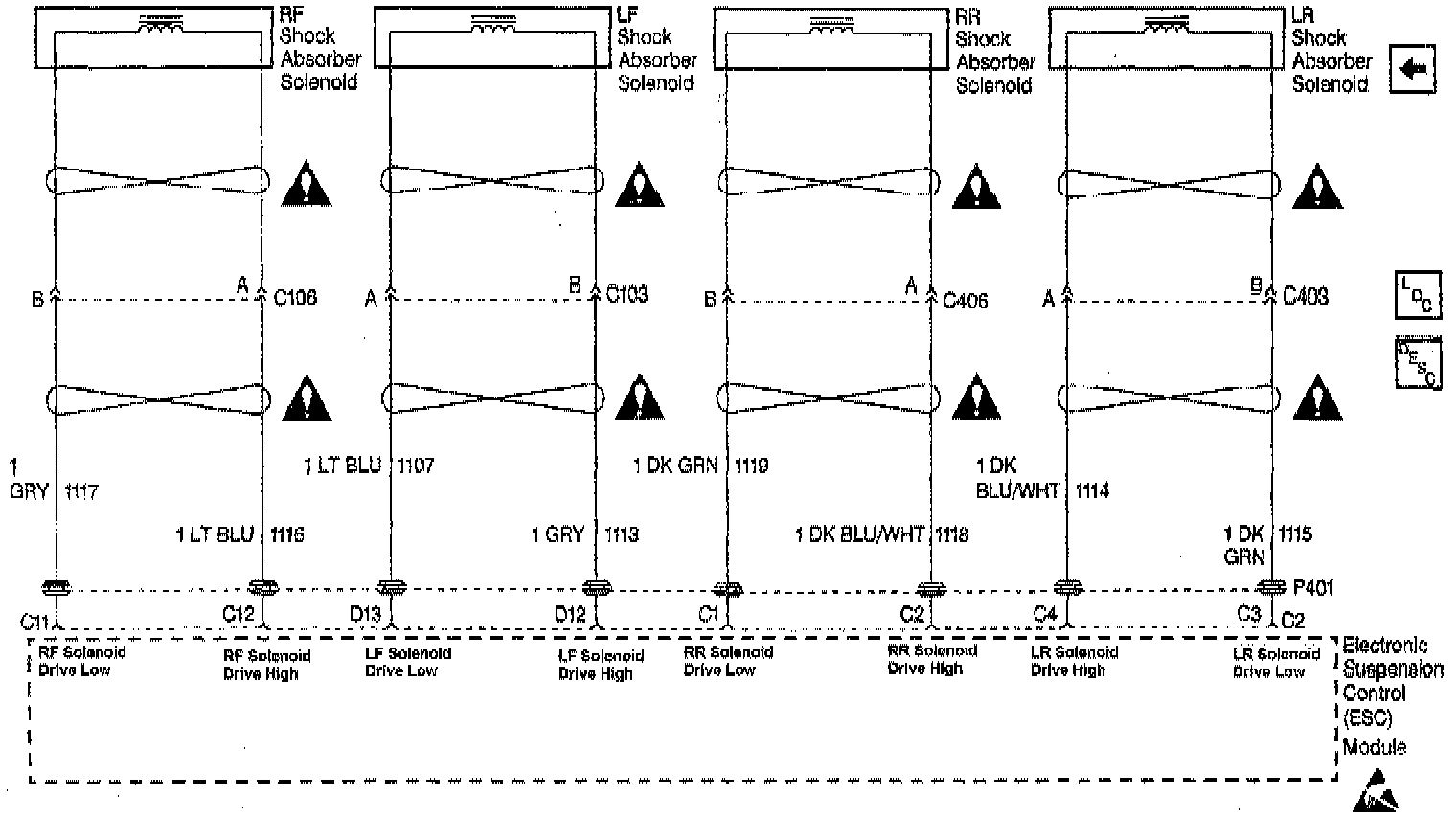

Suspension Controls (Cell 143: Solenoid Control System)
Suspension Controls (Cell 143: Solenoid Control System)
