Home
>>
Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Seats Schematics
>>
SCM Seat Motor System
SCM Seat Motor System

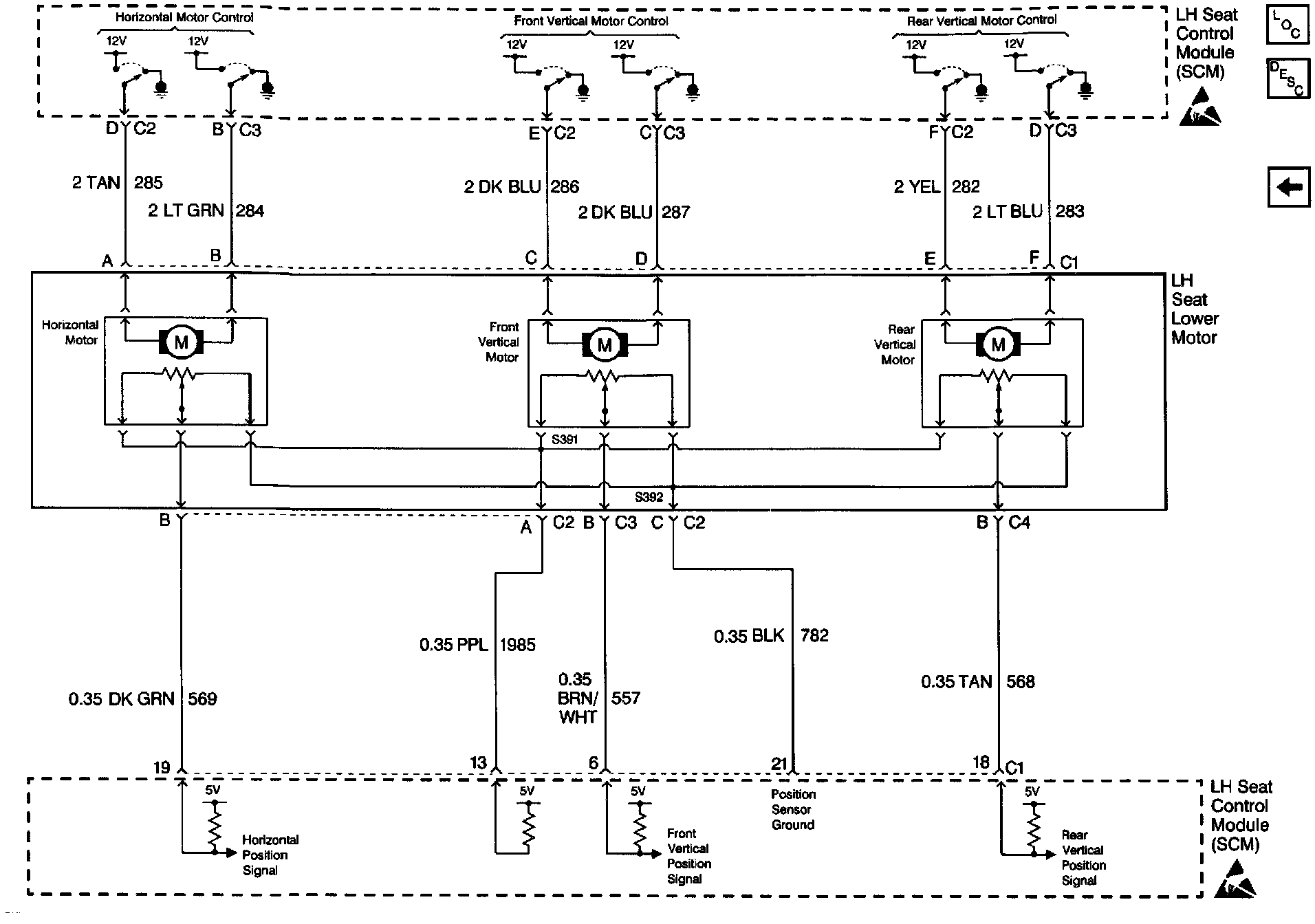

Memory Seats Schematics: SCM Seat Motor System:
