Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Lumbar Support Schematics >> LH

LH

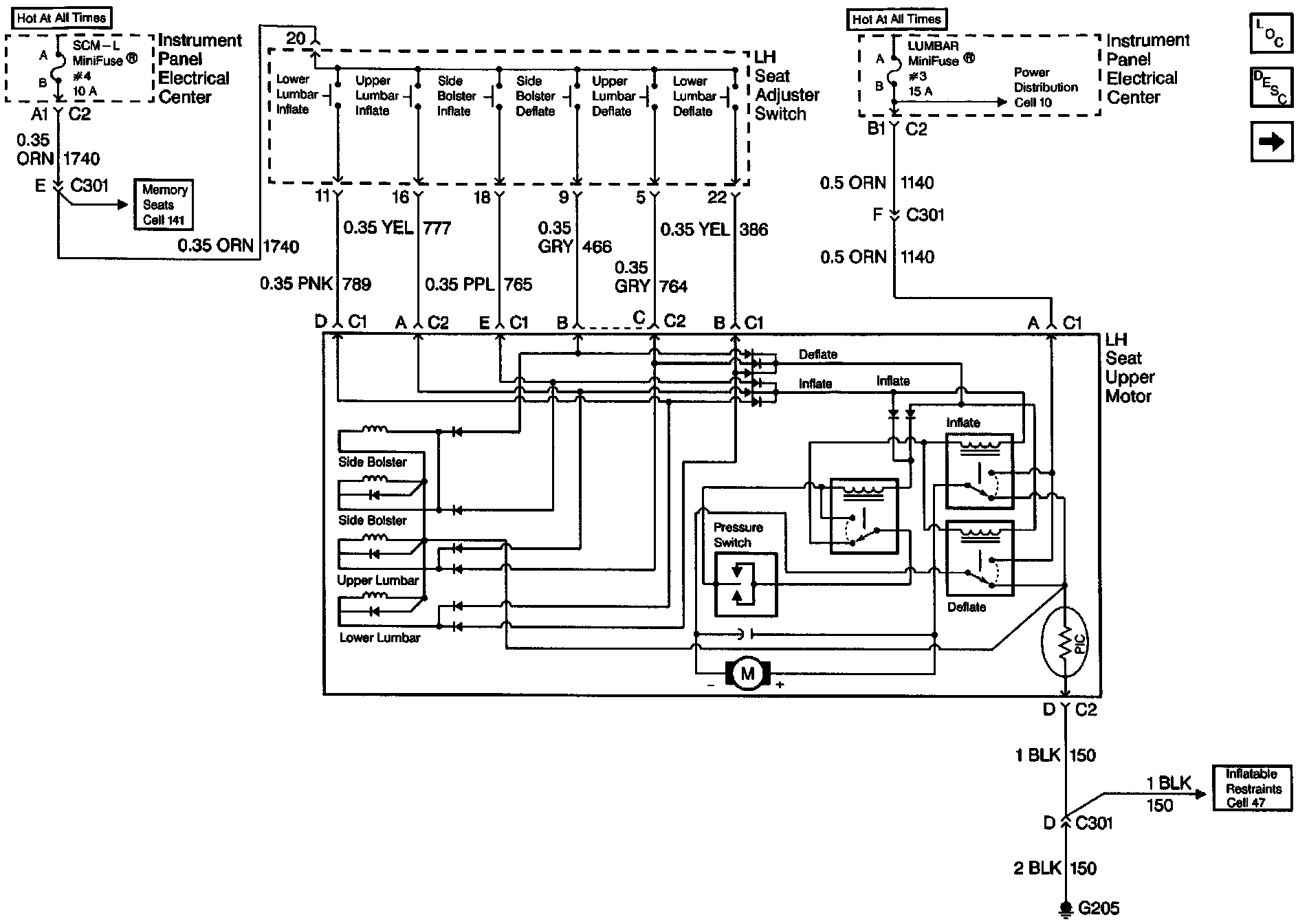

Lumbar Support Schematics: LH Lumbar Support System:
