Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Speaker System
Speaker System

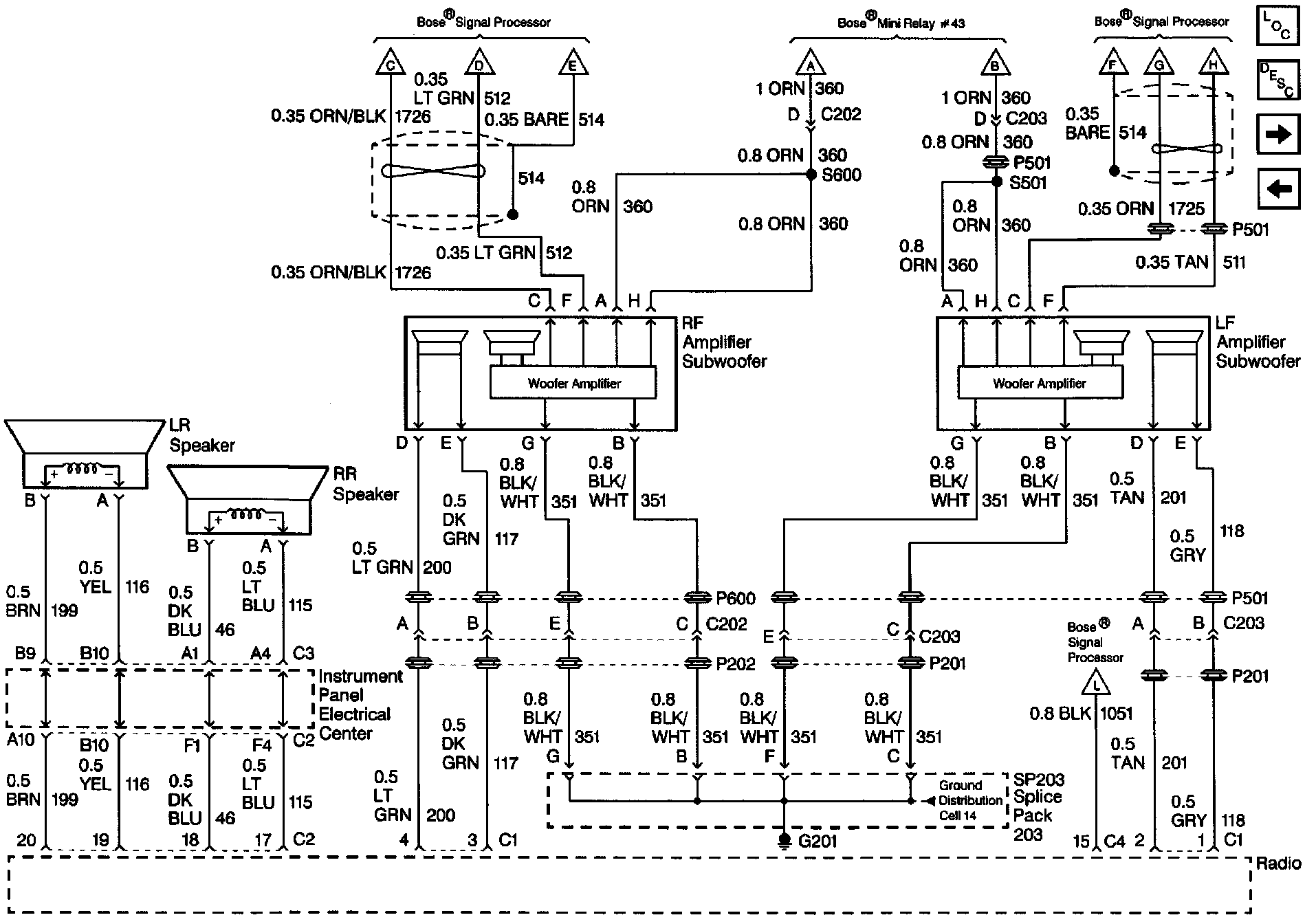

Radio/Audio System Schematics (Front And Rear Speakers):
