Home
>>
Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
TP & APP Sensor Input
TP & APP Sensor Input

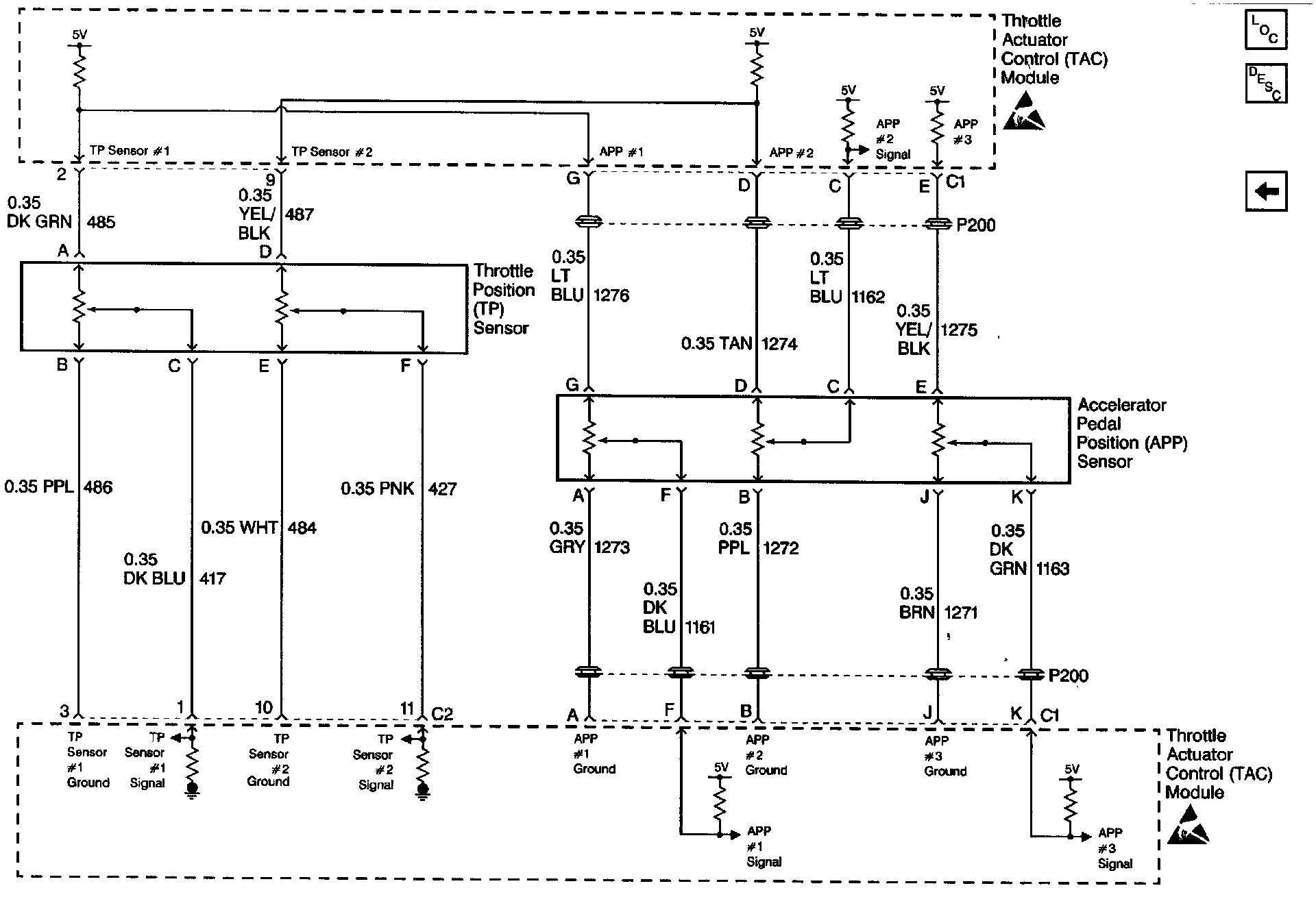

Cruise Control Schematics: TP & APP Sensor Input:
