Home
>>
Chevrolet
>>
1997
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Horn Control & LH Door Ajar Input
Horn Control & LH Door Ajar Input

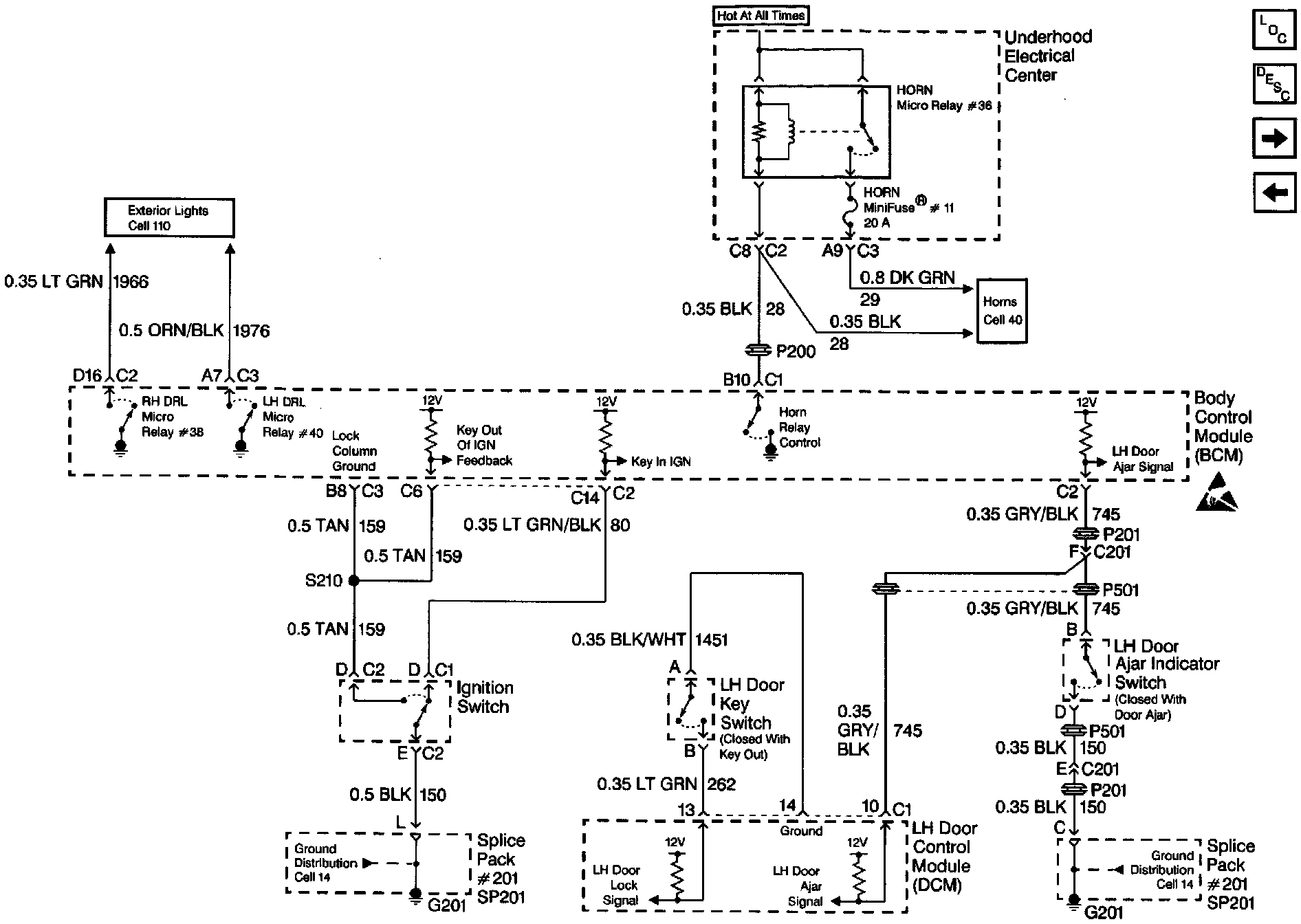

Horn Control & LH Door Ajar Input:
