Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

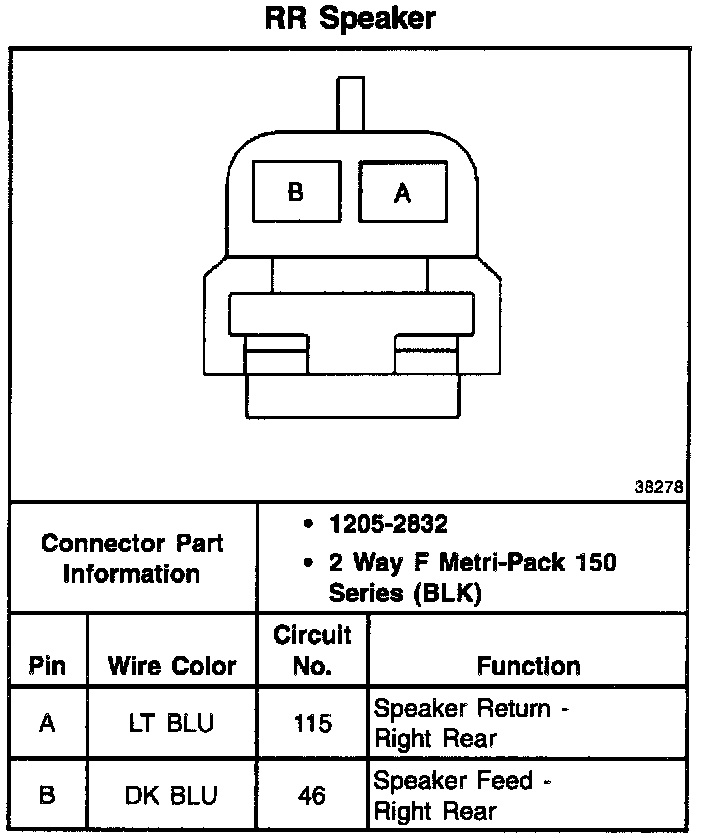

RR Speaker:

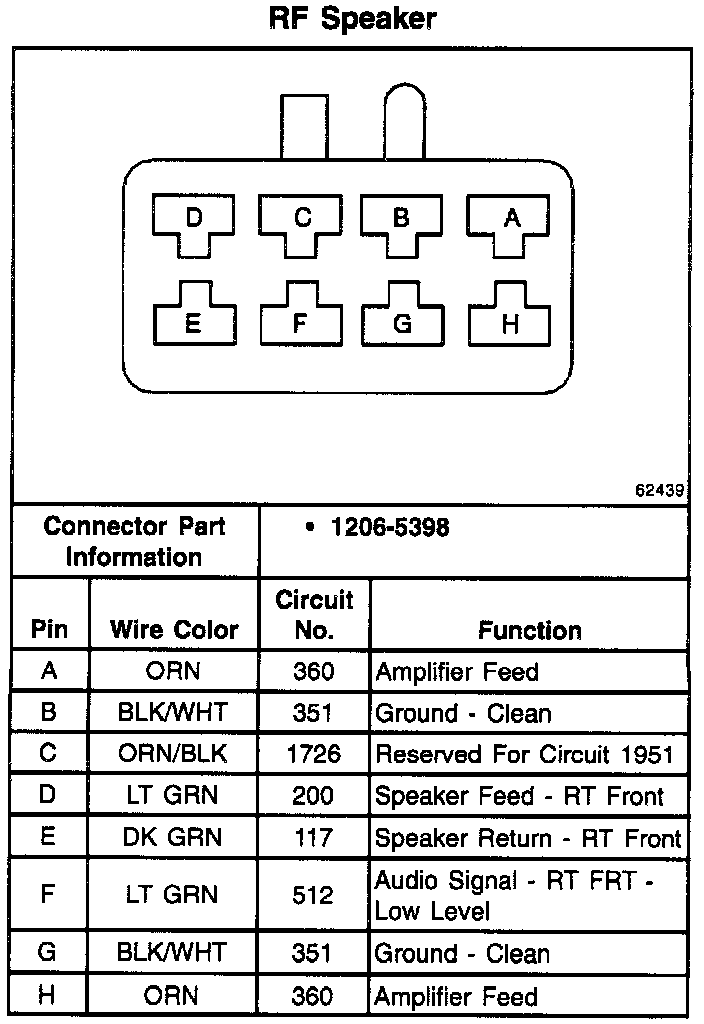

RF Speaker:

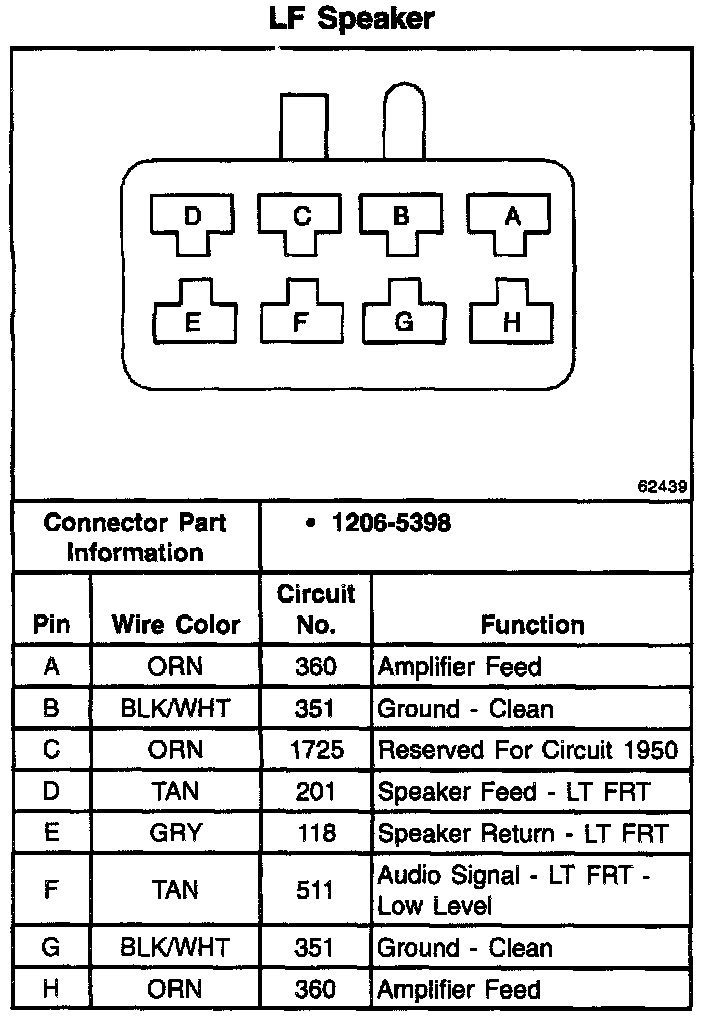

LF Speaker:

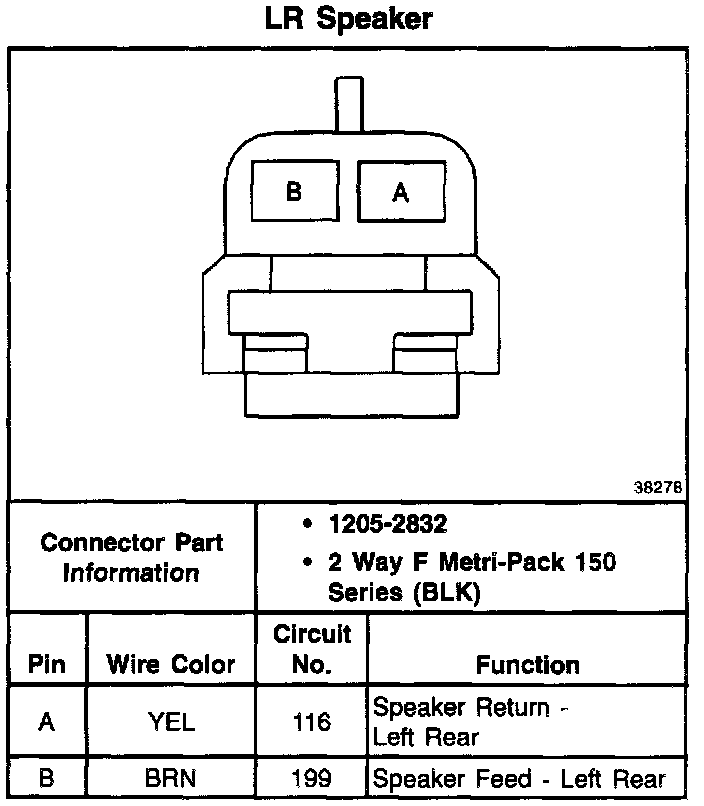

LR Speaker:
