Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> TAC Module Connectors >> C1

C1

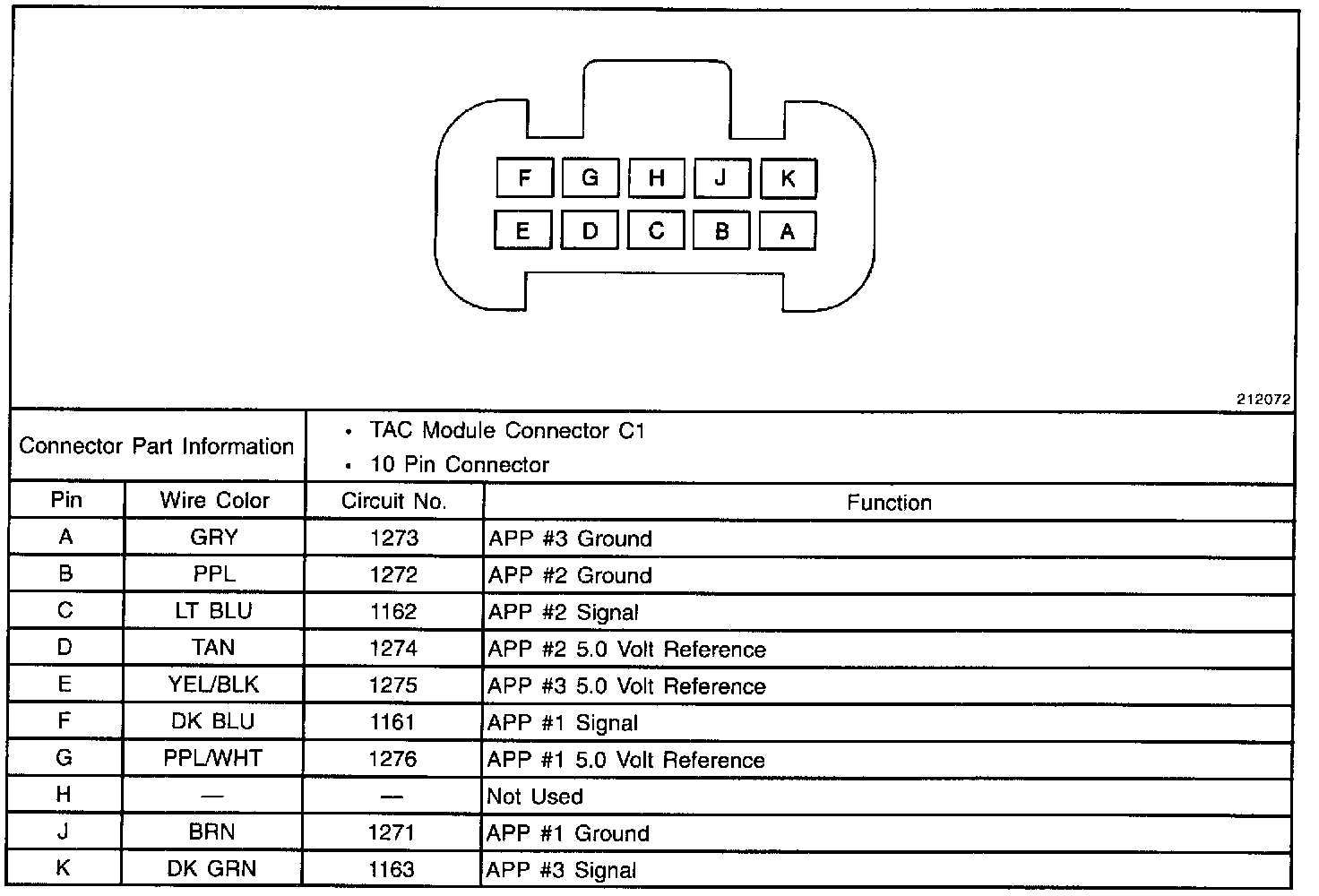

TAC Module Connector C1:
