Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Doors >> LH Door Switch

LH Door Switch

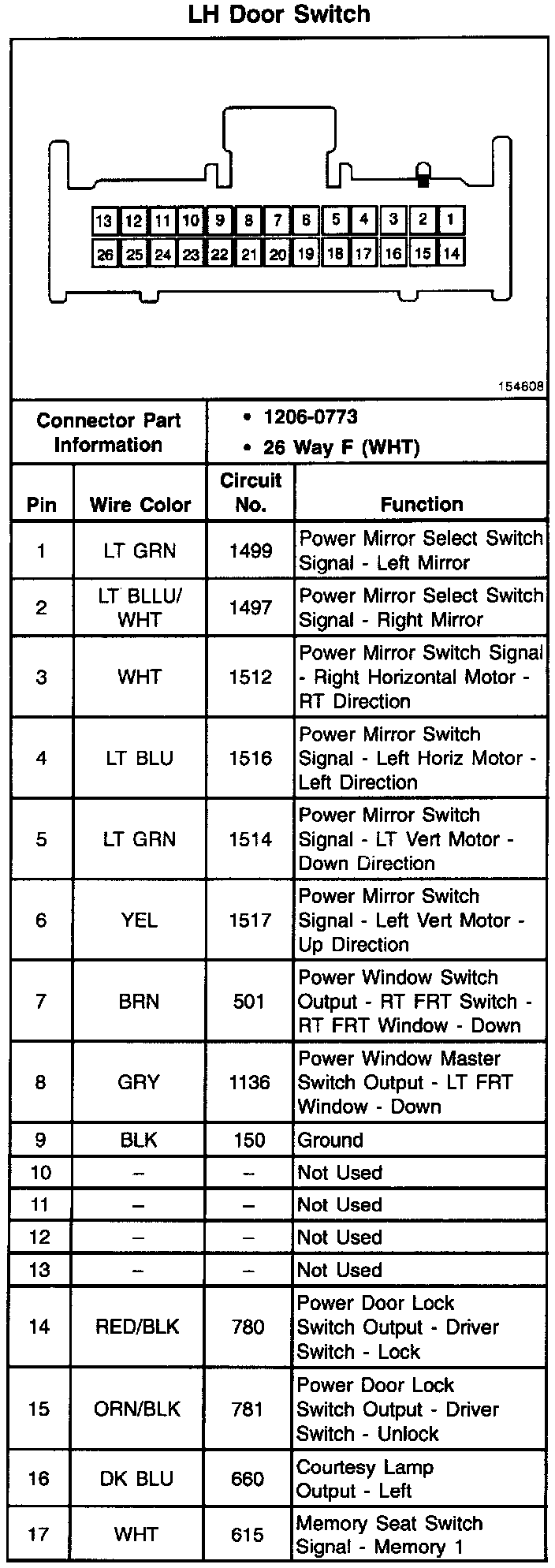

LH Door Switch (Part 1 Of 2):

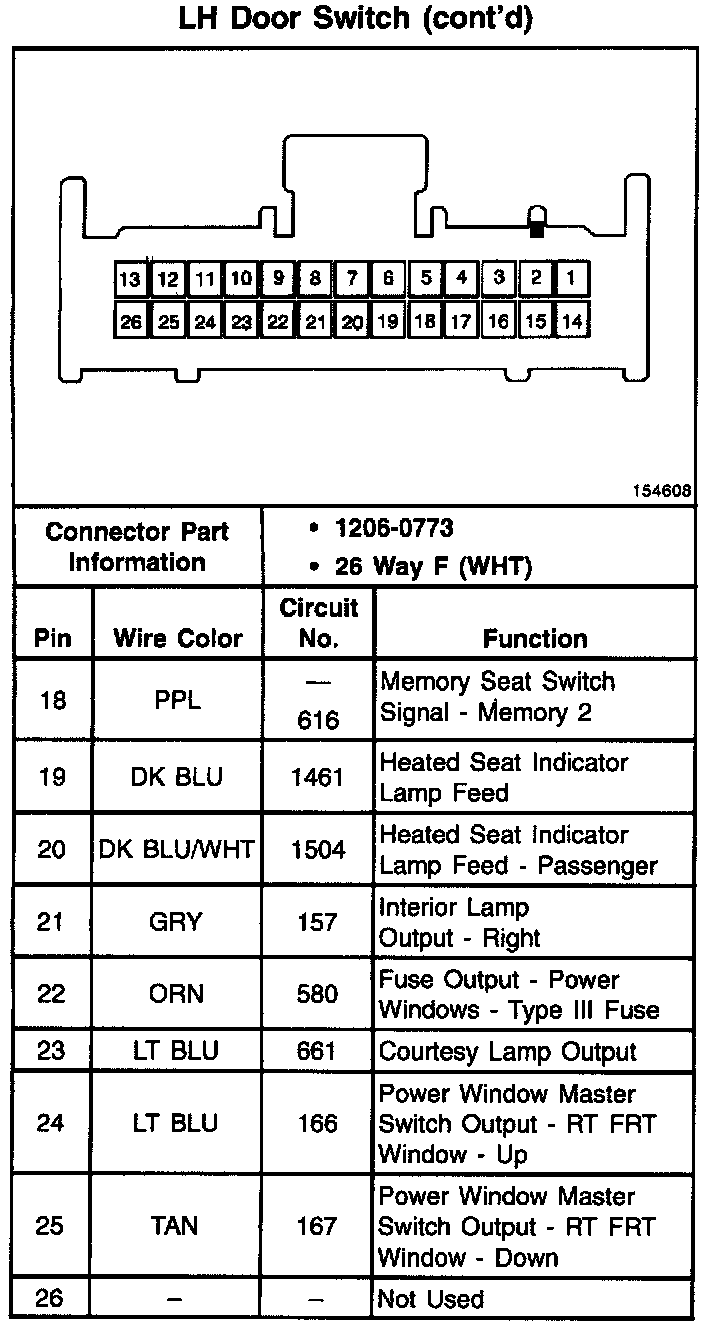

LH Door Switch (Part 2 Of 2):
