Rear

REMOVAL PROCEDURE
1. Disable the parking brake automatic adjuster. Service and Repair
2. Raise the vehicle.
3. Remove the RH muffler. Refer to Exhaust System.

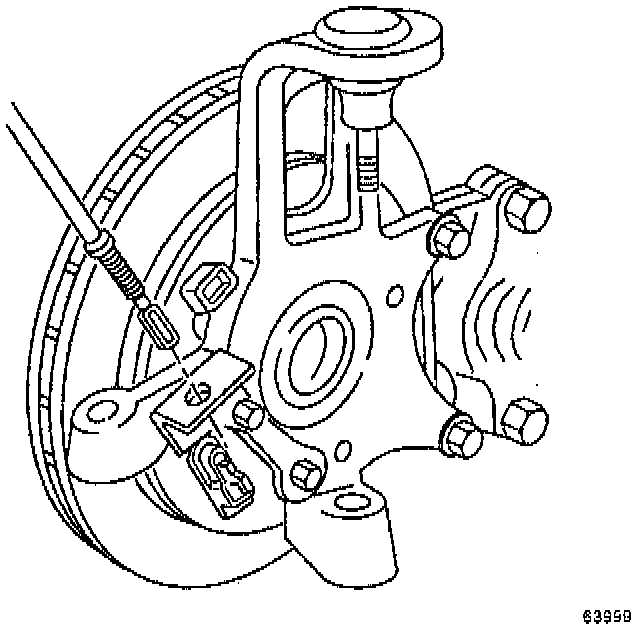

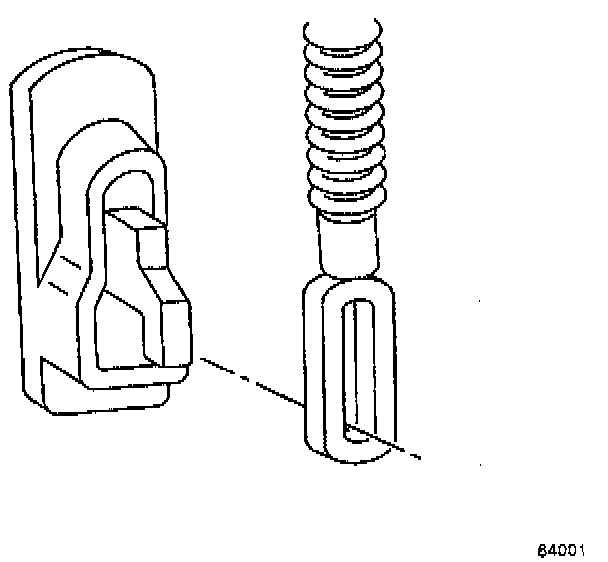

4. Disconnect the rear parking brake cable at the retainer and equalizer.

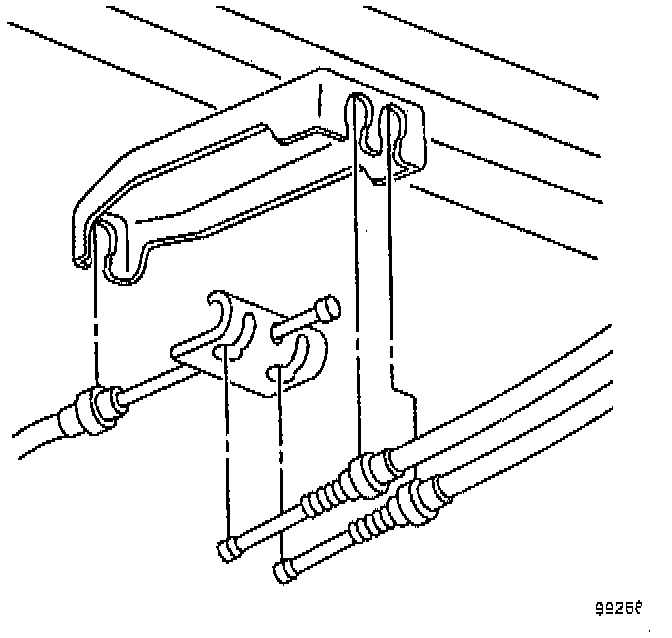

5. Remove the rear parking brake cable from the rear suspension mounting bracket.
6. Remove the rear parking brake cable retainer nut.
7. Remove the rear parking brake cable from the vehicle.

INSTALLATION PROCEDURE
1. Install the rear parking brake cable to the vehicle.
2. Install the rear parking brake cable retainer nut.
3. Connect the rear parking brake cable to the rear suspension mounting bracket.
4. Connect the rear parking brake cable to the retainer and equalizer.
5. Install the RH muffler.
6. Lower the vehicle.
7. Enable parking brake automatic adjuster.
