Seat Cushion: Service and Repair
REMOVAL PROCEDUREFront Seat Cushion Cover Replacement: Removal Procedure:

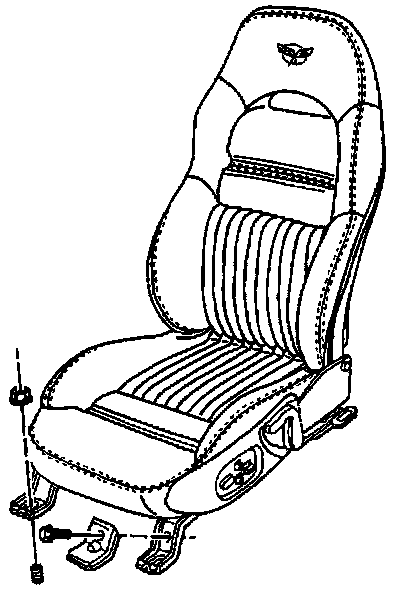

1. Remove the seat.
Front Seat Cushion Cover Replacement: Removal Procedure:

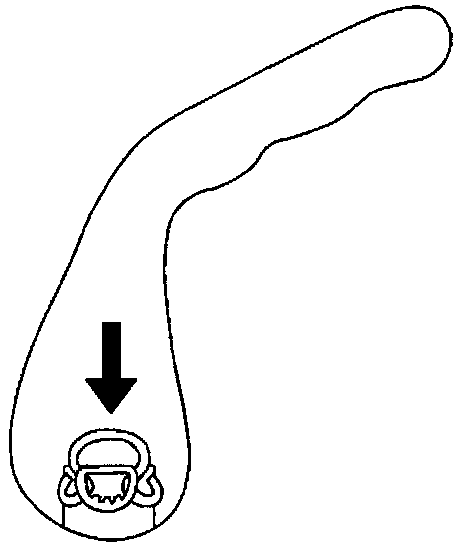

2. Remove the recliner handle.
Front Seat Cushion Cover Replacement: Removal Procedure:

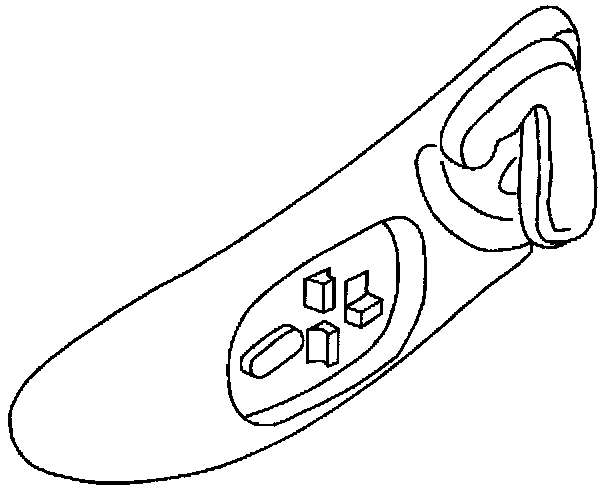

3. Remove the side trim panel and switch (Power Seat).
Front Seat Cushion Cover Replacement: Removal Procedure:

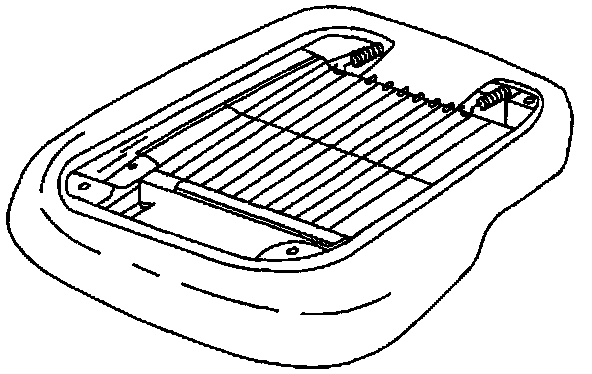

4. Remove the hog rings from the rear flap.
Front Seat Cushion Cover Replacement: Removal Procedure:
5. Unfasten the draw string.
6. Remove the hog rings attaching the rear corners of the seat cushion trim cover.
7. Remove the cover.
INSTALLATION PROCEDURE
Front Seat Cushion Cover Replacement: Installation Procedure:
1. If the draw string was Not cut in the removal of the seat cushion cover skip to step 2. If the draw string was cut to assist in seat removal preform steps 1.1 through 1.5.
1.1. Remove the hog rings attaching the seat cushion cover rear flap.
1.2. Untie the draw string.

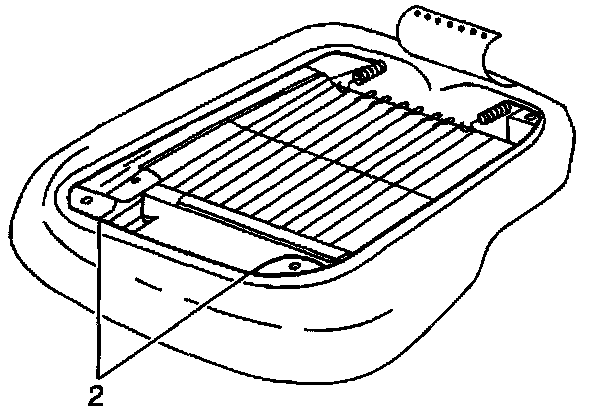

1.3. Make a very small cut (2) in each side of the cushion cover just in front of where the draw string receded to when the draw string was cut.
1.4. Pull the draw string out of the cover far enough to tie the ends together.
1.5. Securely tie the draw string ends together.
Front Seat Cushion Cover Replacement: Installation Procedure:
2. Position the trim cover over the seat cushion foam and the seat frame.

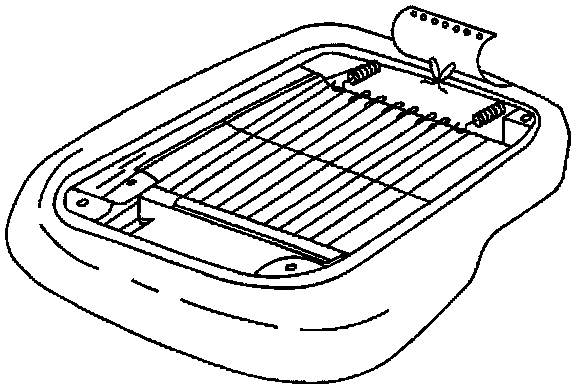

3. Tighten the draw string at the rear of the seat and securely tie.
4. Install the hogrings attaching the rear side corners of the seat cushion trim cover.
Front Seat Cushion Cover Replacement: Installation Procedure:
5. Install the hogrings attaching the rear center flap.
6. If step 1 was preformed wrap the front seat material around the draw string and hog ring the material to the string. Make sure no sharp points of the hog rings are pointed down.
Front Seat Cushion Cover Replacement: Installation Procedure:

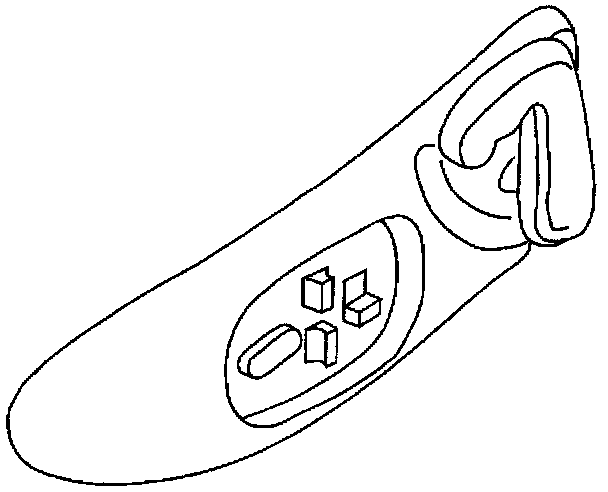

7. Install the side trim panel and switch (power seat).
Front Seat Cushion Cover Replacement: Installation Procedure:
8. Install the recliner handle.
Front Seat Cushion Cover Replacement: Installation Procedure:
9. Install the seat.
