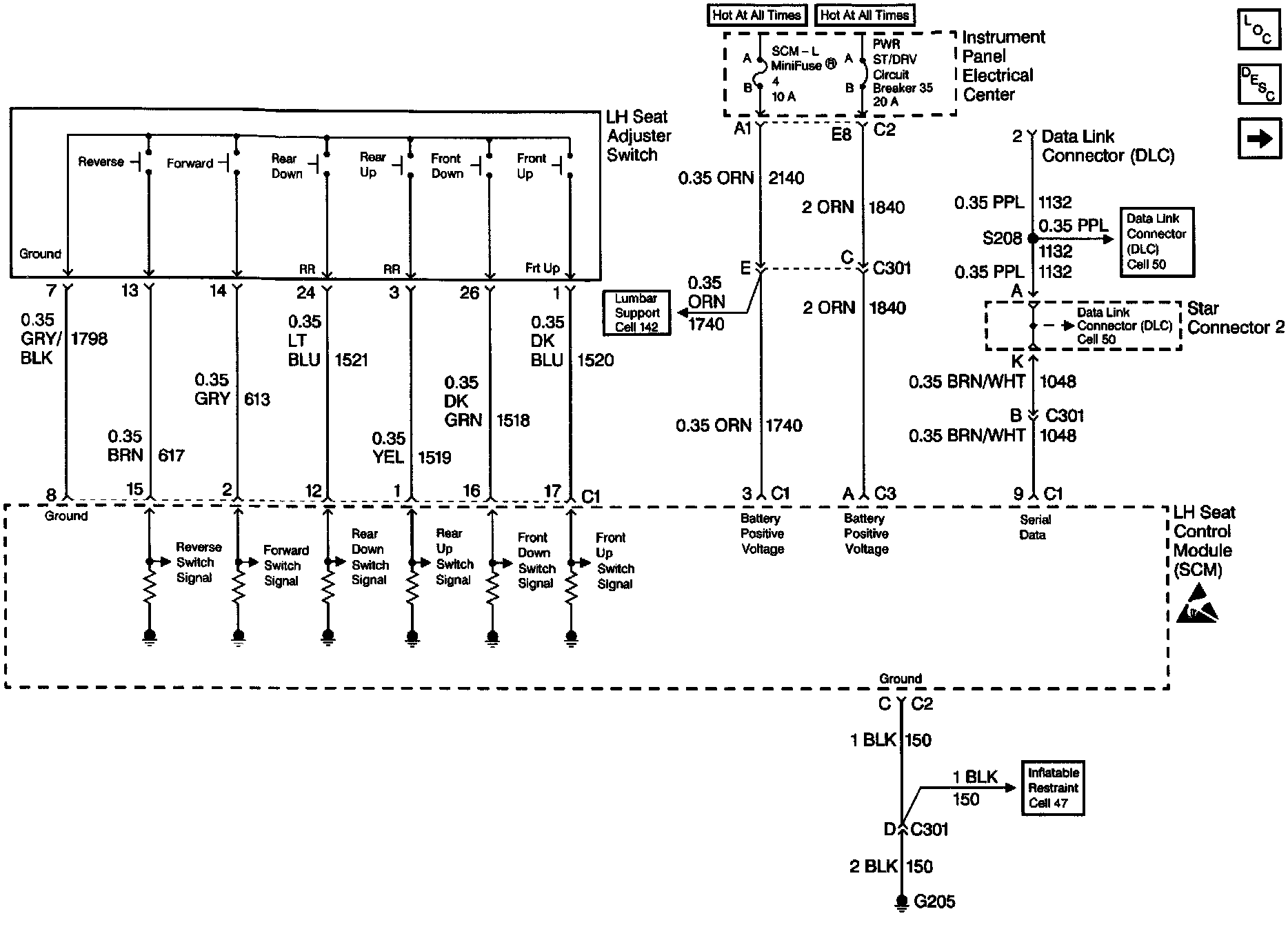

SCM Power, Ground, DLC & Switch Input

Memory Seats Schematics: SCM Power, Ground, DLC & Switch Input:
