Roof Lift Off Panel Rear Weatherstrip Retainer (Side): Removal Procedure:

REMOVAL PROCEDURE
1. Remove the roof lift off panel.

Roof Lift Off Panel Rear Weatherstrip Retainer (Side): Removal Procedure:

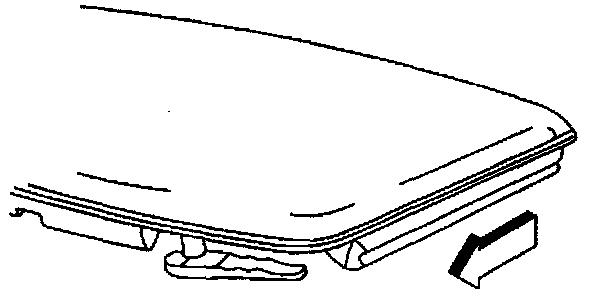

2. Remove the weatherstrip from the side retainer and from the first 150 mm (6 in) of the center retainer.

Roof Lift Off Panel Rear Weatherstrip Retainer (Side): Removal Procedure:

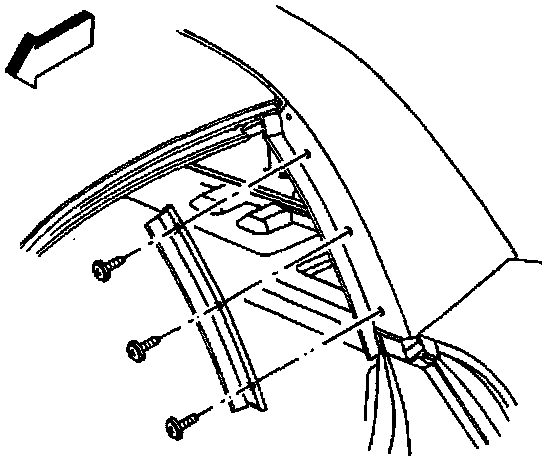

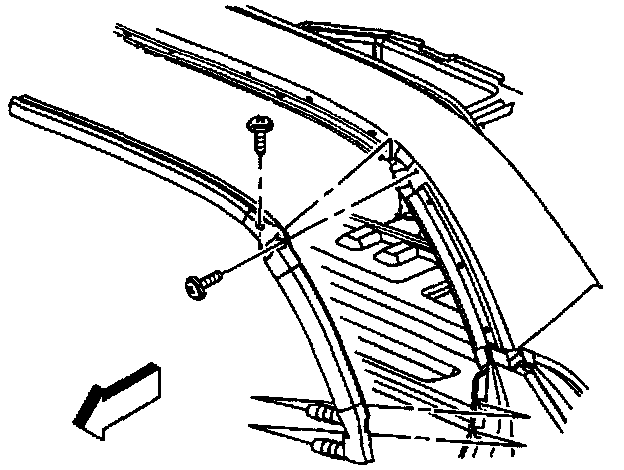

3. Remove the screws attaching the side retainer.
4. Remove the side retainer.

Roof Lift Off Panel Rear Weatherstrip Retainer (Side): Installation Procedure:

INSTALLATION PROCEDURE

IMPORTANT: A minimum of 2 mm (0.08 in) of sealing foam must extend beyond the ends of the retainer to prevent water leaks.

1. Install foam sealing tape to a reusable retainer or peel protective cover from the foam tape on a new retainer.
2. Position the retainer.

IMPORTANT: Stripped, broken, or improperly seated screws must be replaced or repaired to prevent water leaks.

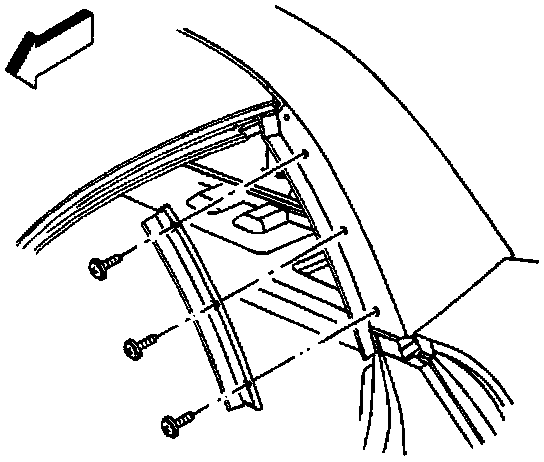

3. Install the screws attaching the retainer.

Tighten
Tighten the roof weatherstrip retainer screws to 3.4 N.m (30 lb in).

NOTE: Refer to Fastener Notice in General Information.

Roof Lift Off Panel Rear Weatherstrip Retainer (Side): Installation Procedure:

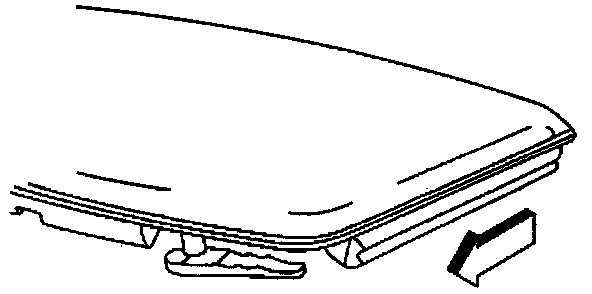

4. Install the weatherstrip.

Roof Lift Off Panel Rear Weatherstrip Retainer (Side): Installation Procedure:

5. Install the roof lift off panel.
