Power Mirror Switch: Service and Repair

Power Mirror Switch Replacement: Removal Procedure:

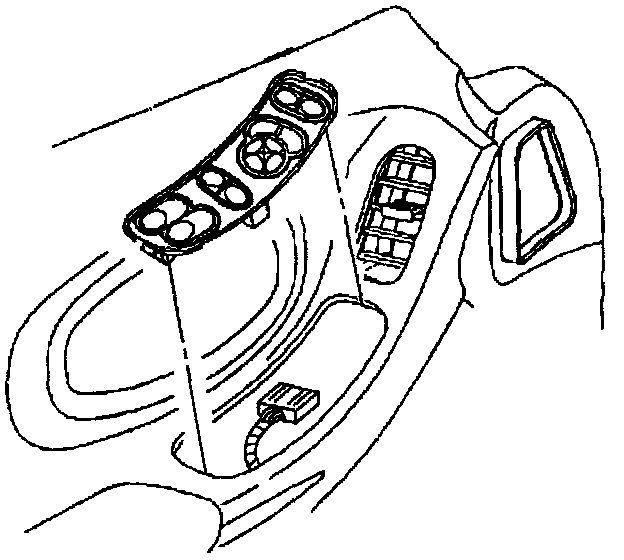

REMOVAL PROCEDURE

IMPORTANT: Protect the trim panel with a rag when prying up the switch to prevent marring the trim panel.

1. Pry up the rear edge of the left door switch assembly.
2. Slide the switch assembly rearward.
3. Disconnect the electrical connector.

Power Mirror Switch Replacement: Installation Procedure:

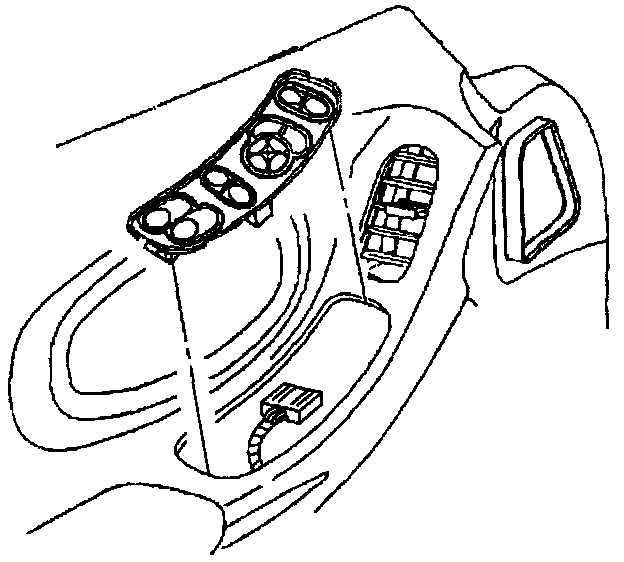

INSTALLATION PROCEDURE
1. Connect the electrical connector to the switch.
2. Insert the front edge of the switch into the door trim panel.
3. Press the rear edge of the switch into the trim panel to secure.
