Passenger
REMOVAL PROCEDUREKnee Bolster Bracket Replacement (Passenger): Removal Procedure:
1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the driver knee bolster trim panel.
4. Remove the I/P passenger compartment.
5. Remove the I/P upper trim pad.
IMPORTANT: The following step must be performed to assure proper trim fits during installation.
6. Mark the location of the passenger knee bolster bracket. Refer to IP Disassembly Precautions.

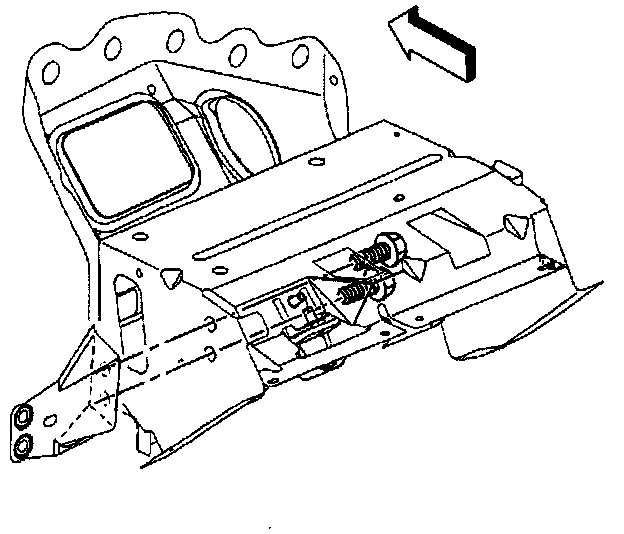

7. Remove the bolts retaining the passenger knee bolster bracket to the I/P center support bracket.
Knee Bolster Bracket Replacement (Passenger): Removal Procedure:

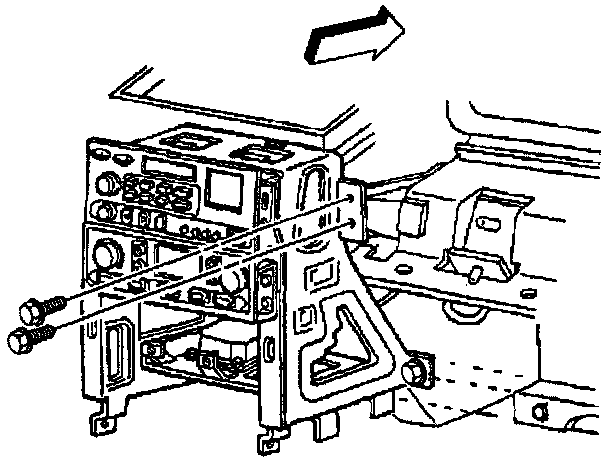

8. Remove the bolts retaining the passenger knee bolster bracket to the passenger SIR bracket.
9. Remove the passenger knee bolster bracket.
INSTALLATION PROCEDURE
Knee Bolster Bracket Replacement (Passenger): Installation Procedure:
1. Install the passenger knee bolster bracket as marked prior to removal.

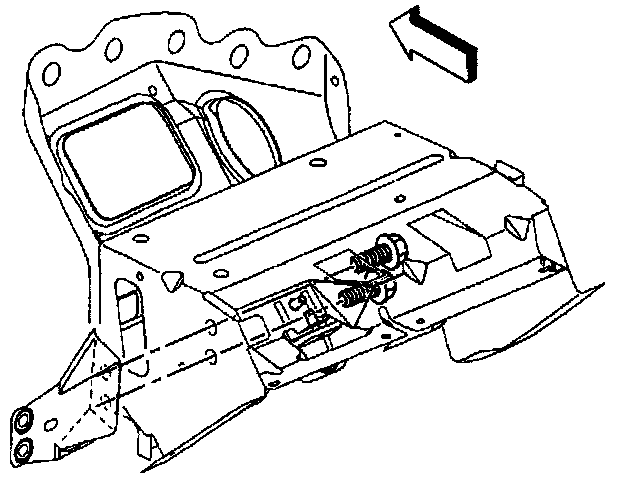

2. Install the passenger knee bolster bracket to passenger SIR bracket retaining bolts.
Tighten
Tighten the passenger knee bolster bracket retaining bolts to 10 Nm (89 lb in).
NOTE: Refer to Fastener Notice in General Information.
Knee Bolster Bracket Replacement (Passenger): Installation Procedure:

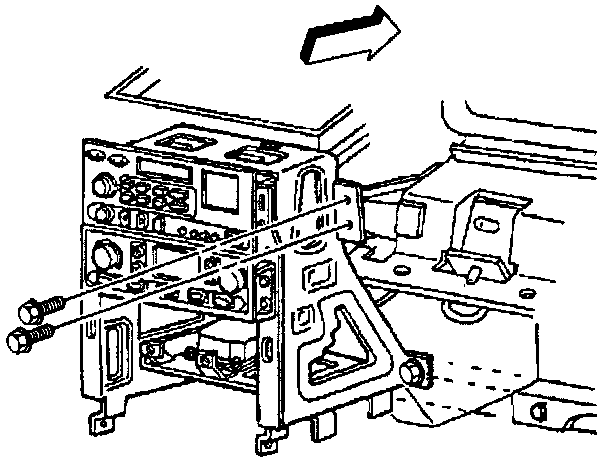

3. Install the passenger knee bolster bracket to I/P center support bracket retaining bolts.
Tighten
Tighten the passenger knee bolster bracket retaining bolts to 10 Nm (89 lb in).
4. Install the I/P upper trim pad.
5. Install the I/P passenger compartment.
6. Install the driver knee bolster trim panel.
7. Install the I/P accessory trim plate.
8. Install the console.
