Driver Outer
REMOVAL PROCEDUREKnee Bolster Bracket Replacement (Driver Outlet): Removal Procedure:
1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the driver knee bolster trim panel.
IMPORTANT: The following step must be performed to assure proper trim fits during installation.

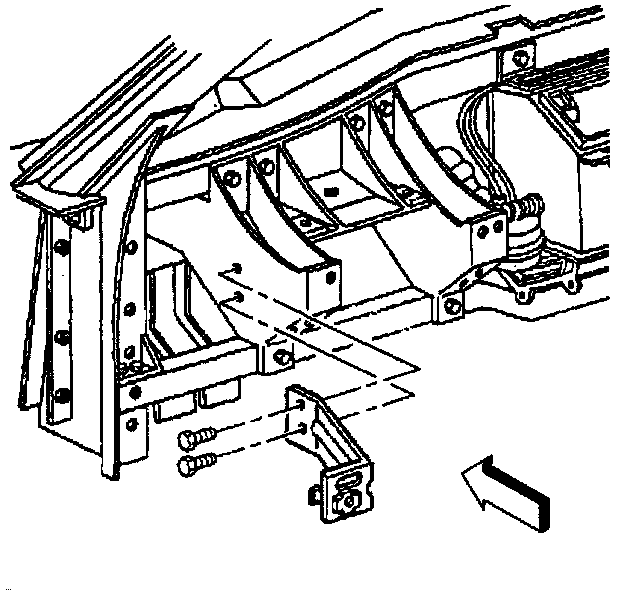

4. Mark the location of the driver knee bolster outer bracket.
5. Remove the bolts mounting the driver knee bolster outer bracket to the steering column bracket.
6. Remove the driver knee bolster outer bracket.
INSTALLATION PROCEDURE
Knee Bolster Bracket Replacement (Driver Outlet): Installation Procedure:
1. Install the outer driver knee bolster bracket into position as marked prior to removal.
2. Install the driver knee bolster outer bracket to steering column bracket bolts.
Tighten
Tighten the driver knee bolster outer bracket bolts to 10 Nm (89 lb in).
NOTE: Refer to Fastener Notice in General Information.
3. Install the driver knee bolster trim panel.
4. Install the I/P accessory trim plate.
5. Install the console.
