Driver
REMOVAL PROCEDUREKnee Bolster Bracket Replacement (Driver): Removal Procedure:
1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the driver knee bolster trim panel.
4. Release the ignition switch and hazard warning switch wiring harness retainers from the driver knee bolster bracket.
IMPORTANT: The following step must be performed to assure proper trim fits during installation.
5. Mark the location of the driver knee bolster bracket. Refer to IP Disassembly Precautions.
6. Remove the bolts retaining the driver knee bolster bracket to the steering column bracket.
7. Remove the driver knee bolster bracket.
INSTALLATION PROCEDURE
Knee Bolster Bracket Replacement (Driver): Installation Procedure:

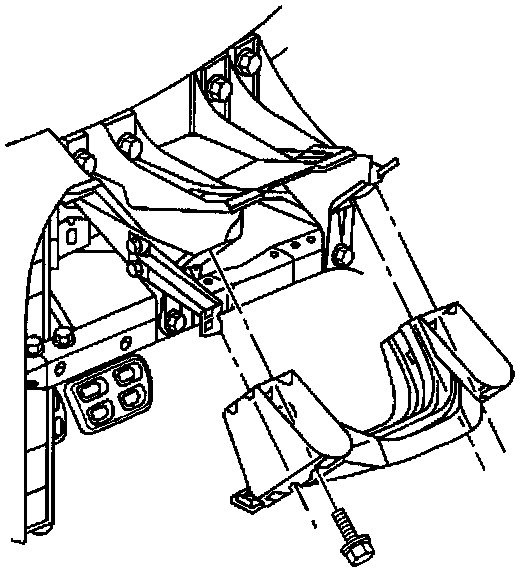

1. Install the driver knee bolster bracket into position as marked prior to removal.
2. Install the bolts retaining the driver knee bolster bracket to the steering column bracket.
Tighten
Tighten the driver knee bolster bracket bolts to 10 Nm (89 lb in).
NOTE: Refer to Fastener Notice in General Information.
3. Secure the ignition switch and hazard warning switch wiring harness retainers to the driver knee bolster bracket.
4. Install the driver knee bolster trim panel.
5. Install the I/P accessory trim plate.
6. Install the console.
