LH
REMOVAL PROCEDUREDefogger Outlet Duct Replacement (LH Side Window): Removal Procedure:
1. Remove the windshield side garnish molding.

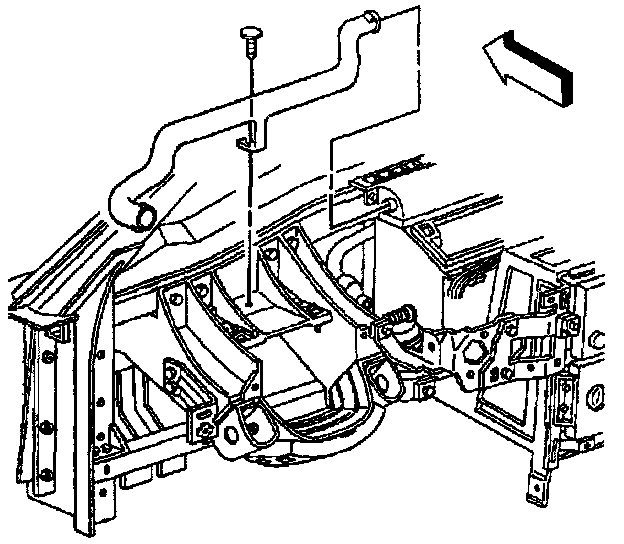

3. Remove the side window defogger upper outlet duct.
3.1. Remove the push-in retainers.
3.2. Use a twisting motion to release the upper duct from the lower duct.
Defogger Outlet Duct Replacement (LH Side Window): Removal Procedure:

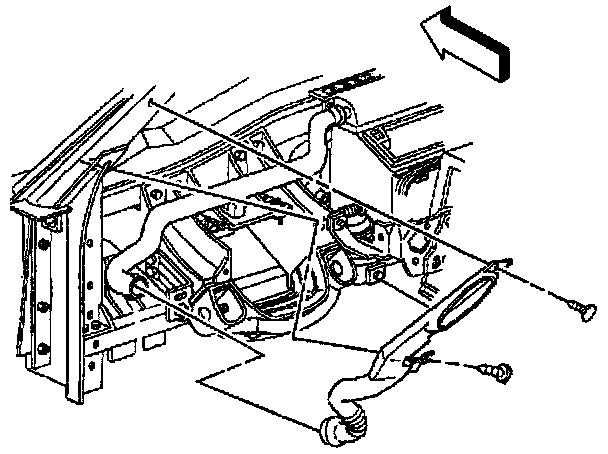

4. Remove the side window defogger lower outlet duct.
4.1. Remove the push-in retainer.
4.2. Use a twisting motion to release the lower duct from the windshield defroster duct.
INSTALLATION PROCEDURE
Defogger Outlet Duct Replacement (LH Side Window): Installation Procedure:

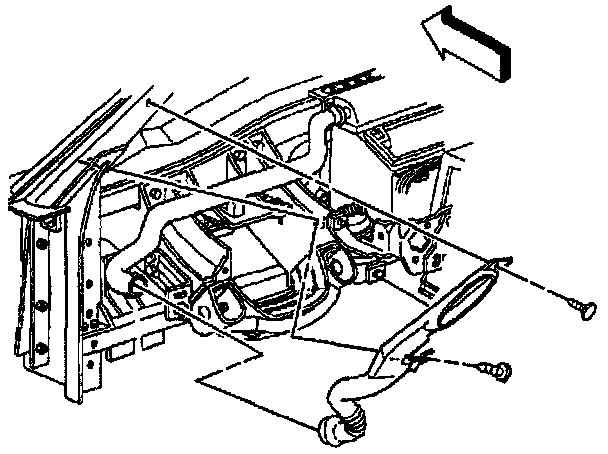

1. Install the side window defogger lower outlet duct.
1.1. Use a twisting motion to secure the lower duct to the windshield defroster duct.
1.2. Install the push-in retainer.
Defogger Outlet Duct Replacement (LH Side Window): Installation Procedure:

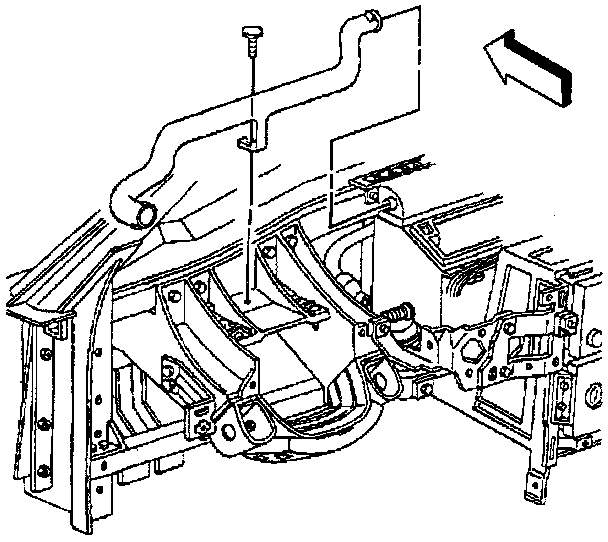

2. Install the side window defogger upper outlet duct.
2.1. Use a twisting motion to secure the upper duct to the lower duct.
2.2. Install the push-in retainers.
3. Install the I/P upper trim pad.
4. Install the windshield side garnish molding.
