Compartment Door Lock Cylinder

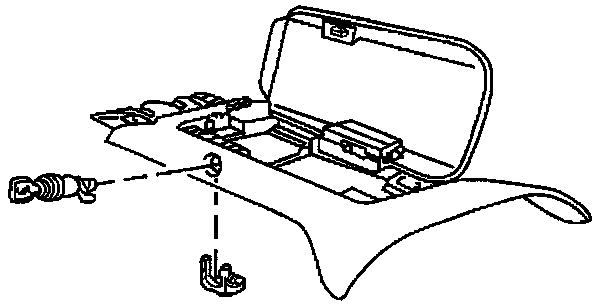

REMOVAL PROCEDURE

Console Compartment Door Lock Cylinder: Removal Procedure:

1. Remove the console from the vehicle.
2. Remove the console lock cylinder retainer.
3. Remove the lock cylinder from the console.

INSTALLATION PROCEDURE

Console Compartment Door Lock Cylinder: Installation Procedure:

1. Install the lock cylinder to the console.
2. Install the lock cylinder retainer.
3. Install the console to the vehicle.
