Front Fender Body Side Molding

REMOVAL PROCEDURE

Front Fender Body Side Molding: Removal Procedure:

1. Heat the molding to between 32°-38° C (90°-100° F) to aid in removal.
2. Pull the molding from the front fender.
^ Start at one end.
^ Cut the adhesive as the molding is pulled loose.
3. Clean any remaining adhesive from the fender using an adhesive and stripe removal disc or a suitable cleaner.
^ 3M(R) Scotch Bright Molding Adhesive and Stripe Removal Disc, or equivalent.
^ 3M(R) General purpose Adhesive cleaner 08984, or equivalent.

INSTALLATION PROCEDURE

Front Fender Body Side Molding: Installation Procedure:

1. Clean the contact surface of the tender with 3M(R) General Purpose Adhesive Cleaner 08984, or equivalent.
2. Preheat the fender molding and the mounting surface of the fender to 32°-38° C (90°-100° F).
3. Peel the protective liner paper from the adhesive on the new molding.

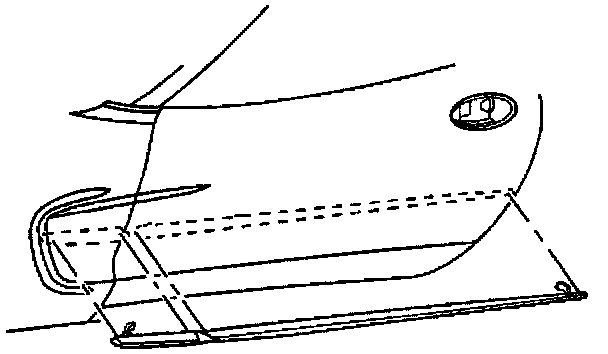

4. Position the molding.
^ Forward of the rear edge of the fender 3 mm (0.1 in).
^ In line with the door molding.
5. Press the molding firmly to the fender using a hand roller to wet out the entire length of the molding.
