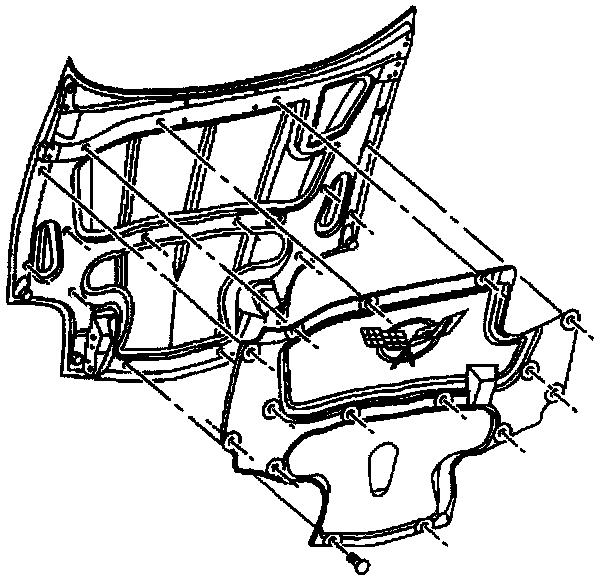

Insulator Replacement

Hood Insulator Replacement: Removal Procedure:

REMOVAL PROCEDURE
1. Unsnap the push-in fasteners securing the insulator.
2. Remove the insulator.

Hood Insulator Replacement: Installation Procedure:

INSTALLATION PROCEDURE
1. Position the insulator to the hood.
2. Install the push-in fasteners attaching the insulator.
