CD Changer: Service and Repair

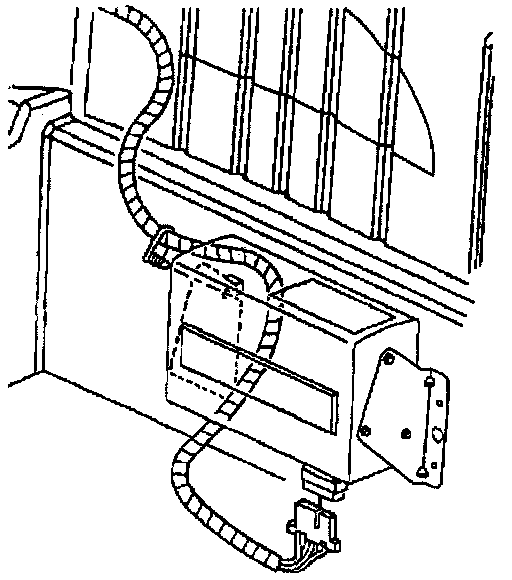

REMOVAL PROCEDURERemote CD Changer Replacement: Removal Procedure:
1. Open the rear lift window panel.
2. Disconnect the electrical/audio connector from the Remote Compact Disc (CD) changer.
Remote CD Changer Replacement: Removal Procedure:

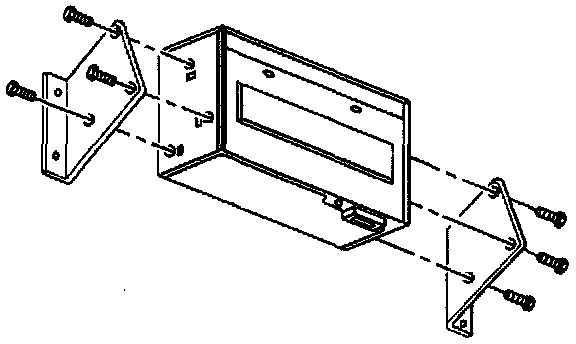

3. Remove the remote CD changer mounting bracket bolts.
Remote CD Changer Replacement: Removal Procedure:

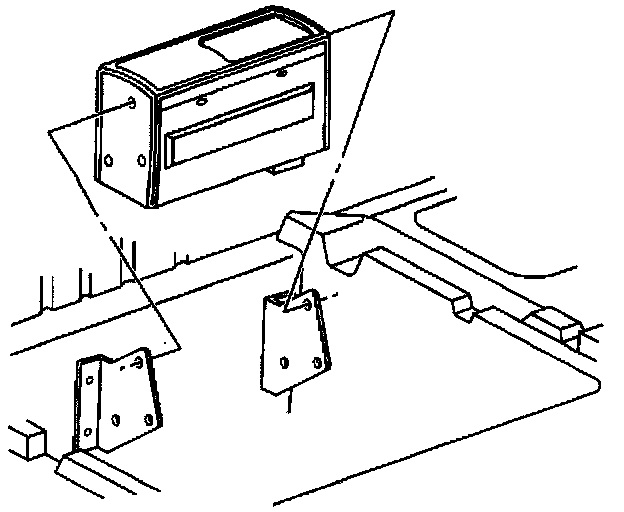

4. Remove the remote CD changer from the mounting brackets.
IMPORTANT: Reinstall the transportation pin when shipping or transporting the remote CD changer.
5. If shipping or transporting the remote CD changer, reinstall the transportation pin by inserting into the original position and fixing in place with clear tape.
INSTALLATION PROCEDURE
Remote CD Changer Replacement: Installation Procedure:
1. Remove the transportation pin from the remote CD changer, if installed prior.

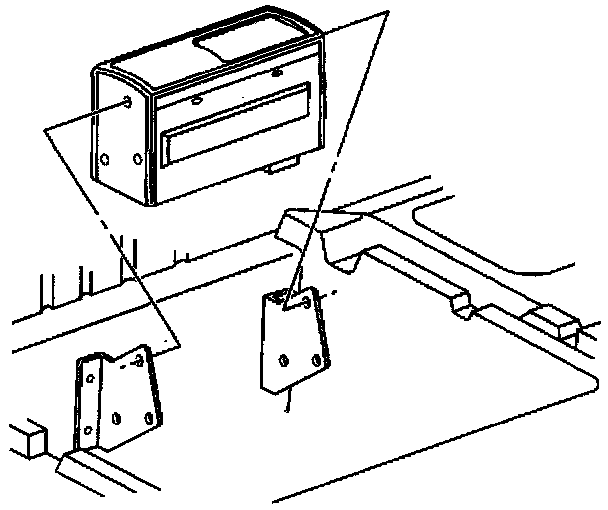

2. Install the remote CD changer to the mounting brackets.
Remote CD Changer Replacement: Installation Procedure:

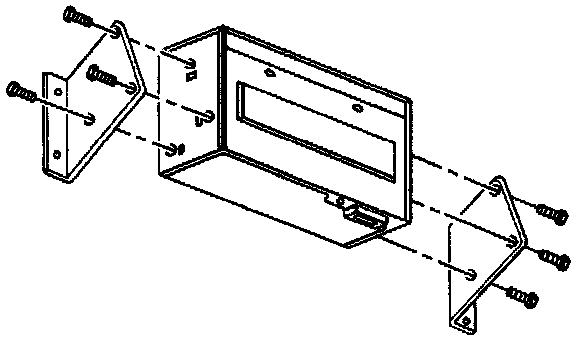

3. Install the remote CD changer mounting bracket bolts.
Tighten
Tighten the remote CD changer mounting bracket bolts to 1.9 N.m (17 lb in).
NOTE: Refer to Fastener Notice in General Information.
Remote CD Changer Replacement: Installation Procedure:

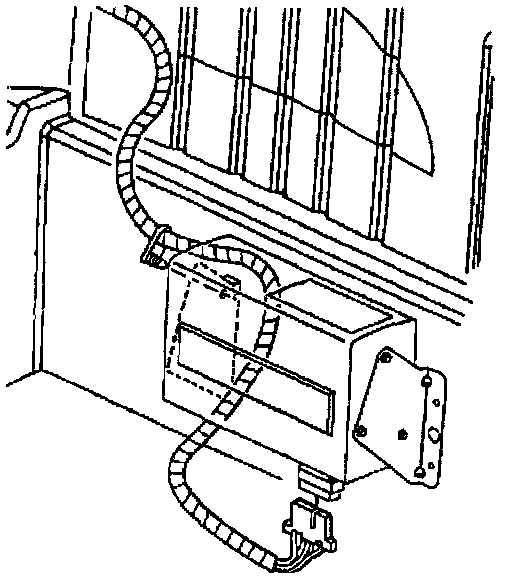

4. Connect the electrical/audio connector to the remote CD changer.
5. Close the rear lift window panel.
