P1652

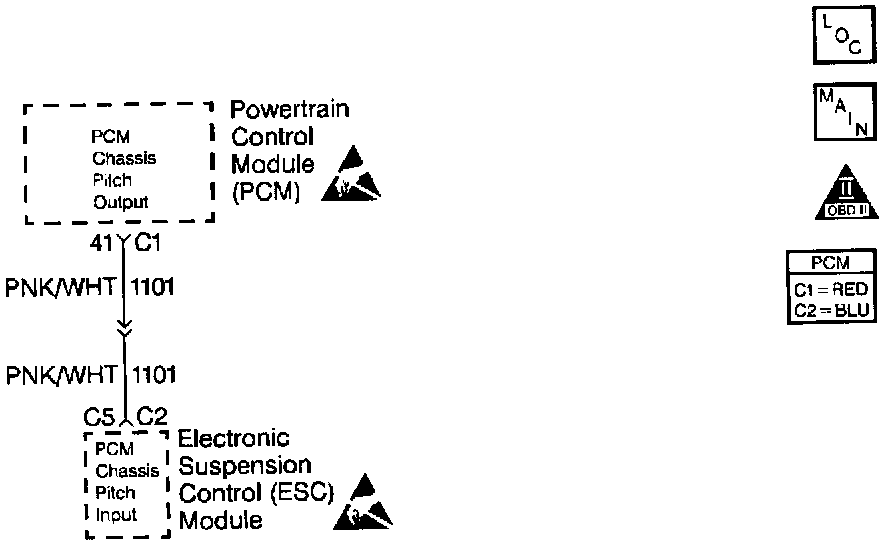

Electrical Diagram:

CIRCUIT DESCRIPTION

The PCM controls the Powertrain Induced Chassis Pitch by grounding the control circuit via an internal switch called a driver. The primary function of the driver is to supply the ground for the controlled component. The driver has a fault line which is monitored by the PCM. When the PCM commands a component ON, the voltage of the control circuit should be low (near 0.0 volts). When the PCM commands the control circuit to a component OFF, the voltage potential should be high (near battery voltage). If the fault detection circuit senses a voltage other than what the system expects, the fault line status changes causing the DTC to set.

The PCM receives an ignition voltage feed from the Electronic Suspension Control module on the Powertrain Induced Chassis Pitch circuit. The PCM grounds this circuit when the vehicle accelerates rapidly or brakes hard. When the chassis pitch input circuit goes low (about 0.0 volts), the ESC module commands all four shock absorber solenoids to a firm position. The PCM calculates the chassis pitch information based on the engine torque and the vehicle braking force.

CONDITIONS FOR SETTING THE DTC

^ The PCM detects that the commanded state of the driver and the actual state of the control circuit do not match.

^ The condition must exist for a minimum of 5 seconds.


ACTION TAKEN WHEN THE DTC SETS

^ The PCM stores the DTC information into memory when the diagnostic runs and fails.

^ The Malfunction Indicator Lamp (MIL) will not illuminate.

^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC

^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.

^ A last test failed (Current DTC) will clear when the diagnostic runs and does not fail.

^ The PCM battery voltage is interrupted.

^ Use a scan tool in order to clear the MIL/DTC.


DIAGNOSTIC AIDS

Using the Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and/or Failure Records data can help determine how many miles since the DTC set. The Fail Counter and Pass Counter can also help determine how many ignition cycles the diagnostic reported a pass and/or a fail. Operate vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed. For an intermittent condition, refer to Symptoms. Testing and Inspection

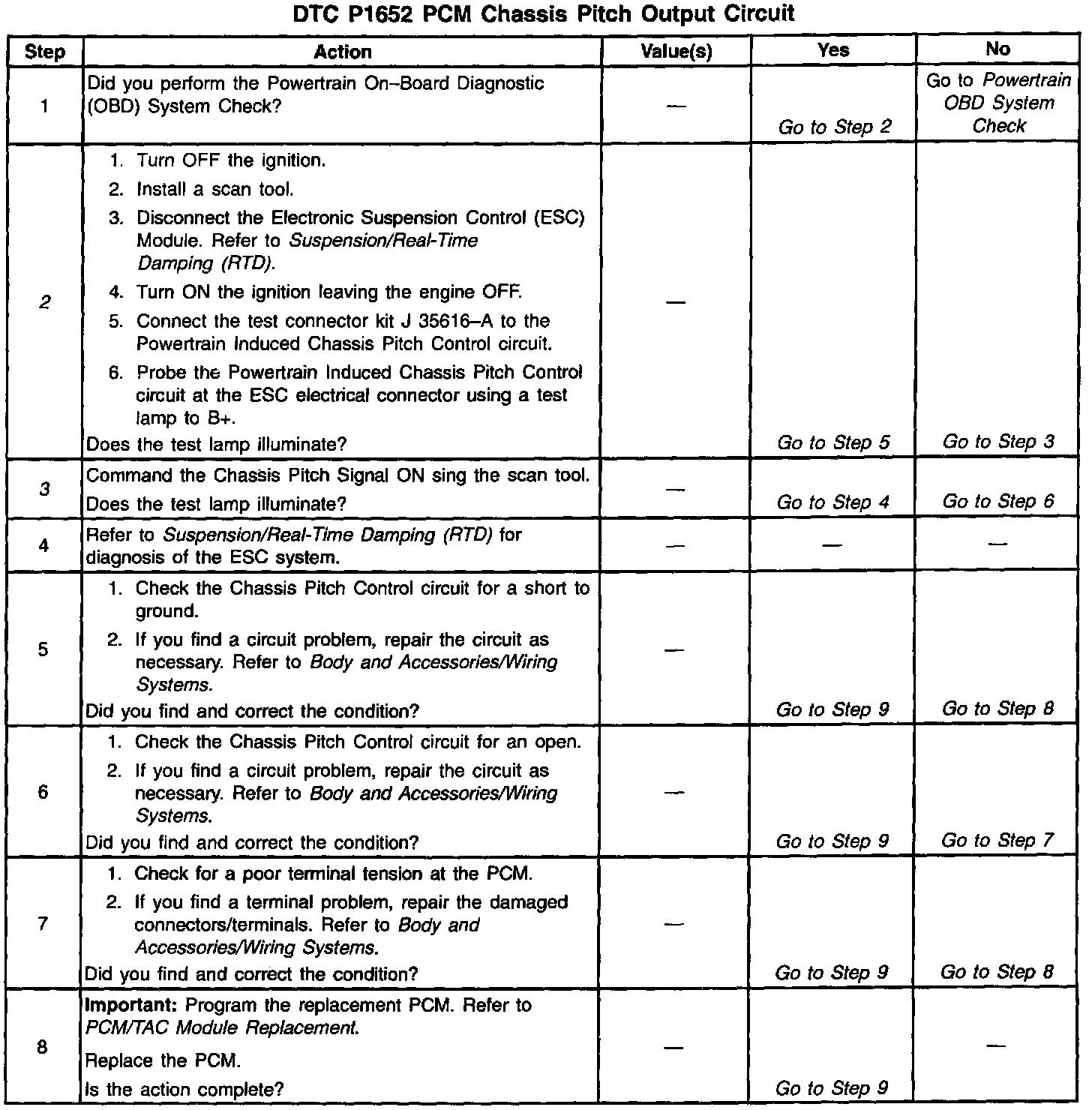

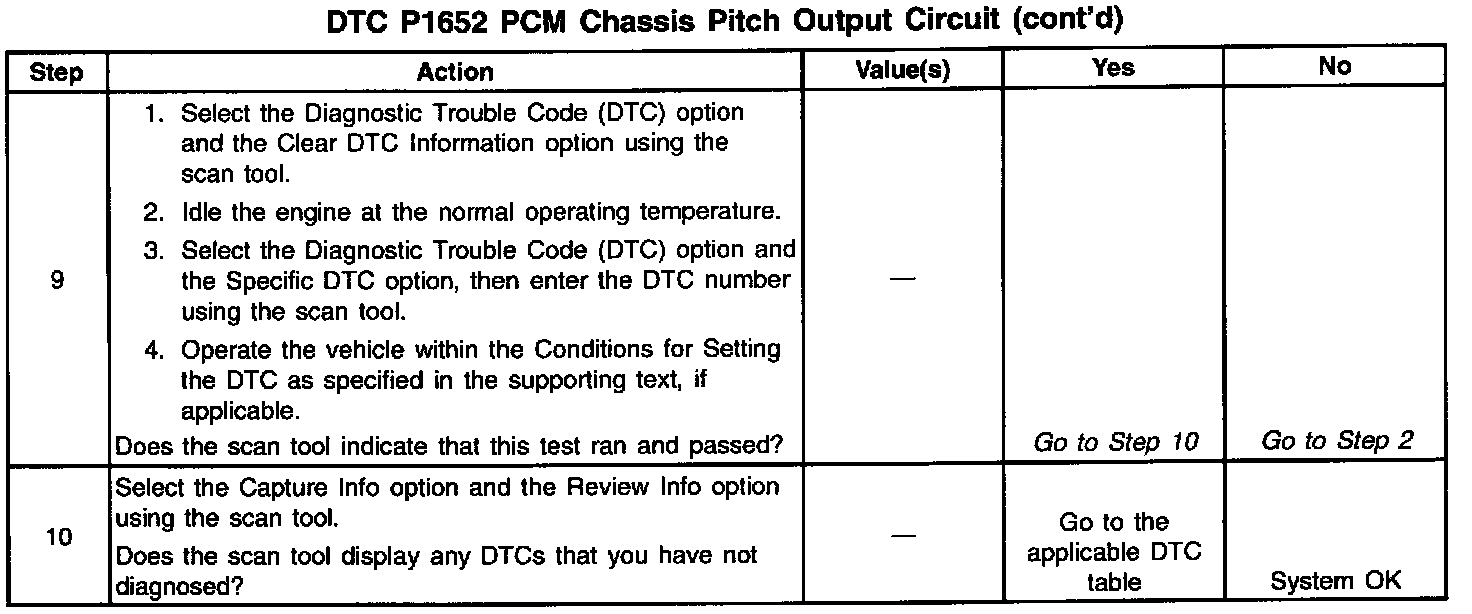

TEST DESCRIPTION

The numbers below refer to the step numbers on the diagnostic table.

2. This step determines if the Powertrain Induced Chassis Pitch control circuit is shorted to ground.

3. This step determines if the Powertrain Induced Chassis Pitch control circuit is open or, the PCM is unable to control the Powertrain Induced Chassis Pitch control circuit.
